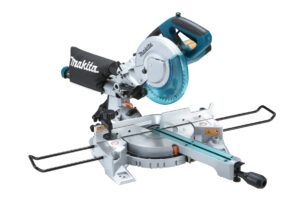

Slide Compound Saw
LS0714
1 010 W • 190 mm • 6 000 min⁻¹
Light and portable saw for builders
A slide compound saw for cross and mitre cutting with a 1 010 W motor and a blade with a diameter of 190 mm. An ideal choice for construction and other demanding sectors. Four steel poles with four linear ball bearings ensure stable and accurate cutting.
| Bore Size (Arbor Diameter) | 20 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 52 x 212 mm |
| Capacity 90° | 52 x 300 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 40 x 300 mm |
| Sound Pressure Level | 92 dB(A) |
| Max. Bevel Range (Left) | 45 / 5 º |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 670 x 430 x 458 mm |
| Continuous Input Power | 1010 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 101 dB(A) |
| Weight Without Cable (EPTA) | 13,1 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Blade Diameter | 190 mm |
| Tool Category | Sawing |
| No load speed | 6000 min⁻¹ |
| Max. Mitre Range (Left) | 47 / 57 º |
