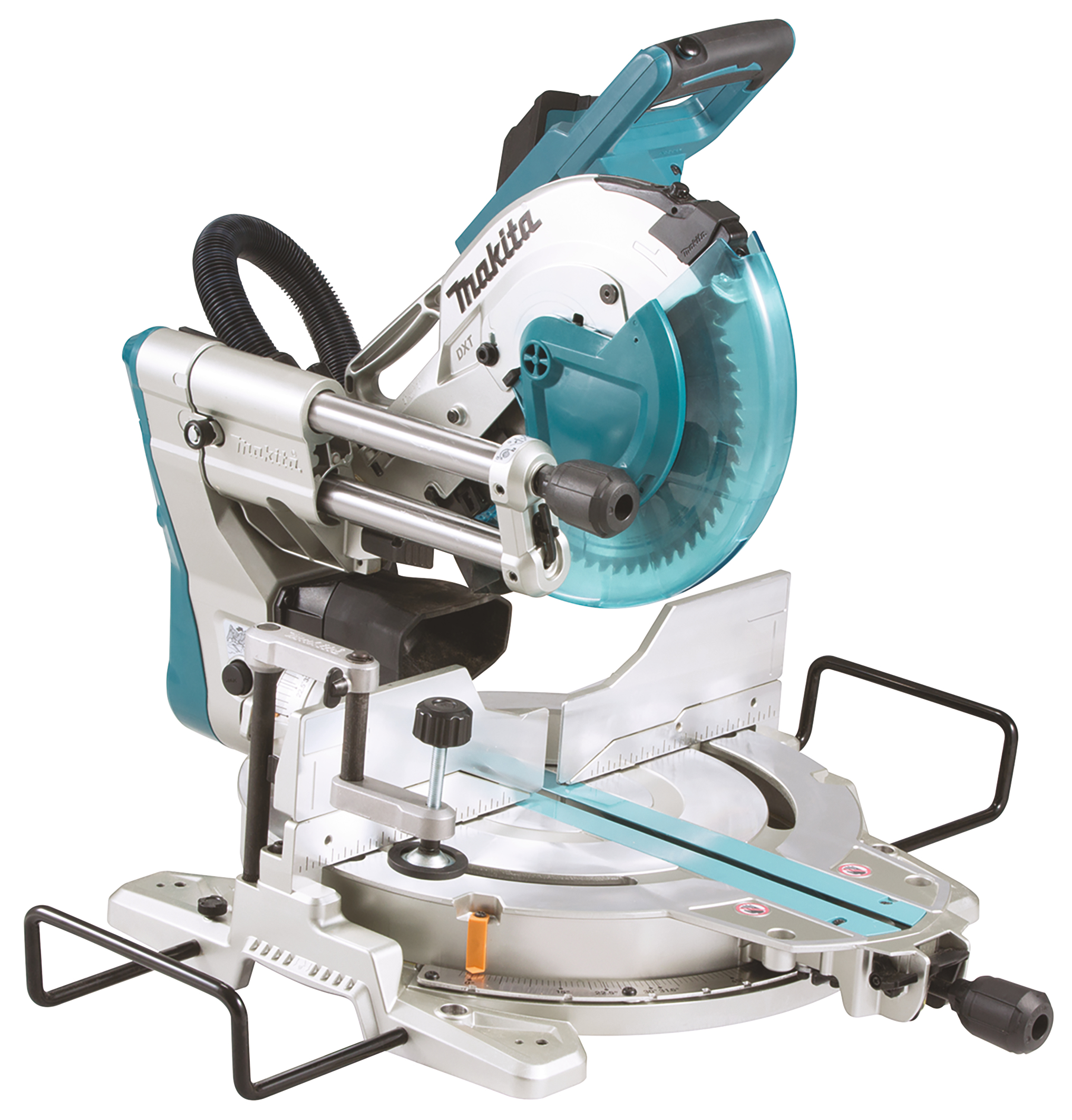

Slide Compound Miter Saw
LS1019L
1 510 W • 260 mm • 3 200 min⁻¹
Efficient and accurate saw for high-capacity applications
An accurate high-capacity saw with a 1 510 W motor for building and other worksites. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Excellent dust removal function.
• superior capacity
• outstanding dust extraction
• can be placed all the way to the wall due to new construction
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 91 x 197 / 68 x 218 mm |
| Capacity 90° | 91 x 279 / 68 x 310 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 58 x 279 / 42 x 310 mm |
| Sound Pressure Level | 91 dB(A) |
| Max. Bevel Range (Left) | 48 / 48 º |
| Laser Class | 2M |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 805 x 644 x 660 mm |
| Continuous Input Power | 1510 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 101 dB(A) |
| Weight Without Cable (EPTA) | 26,3 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Blade Diameter | 260 mm |
| Tool Category | Sawing |
| Bevel capacity right 45° (Miter 0°, Bevel R 45°) | 43 x 279 / 29 x 305 mm |
| Max. Mitre Range (Left) | 60 / 60 º |
| No load speed | 3200 min⁻¹ |
