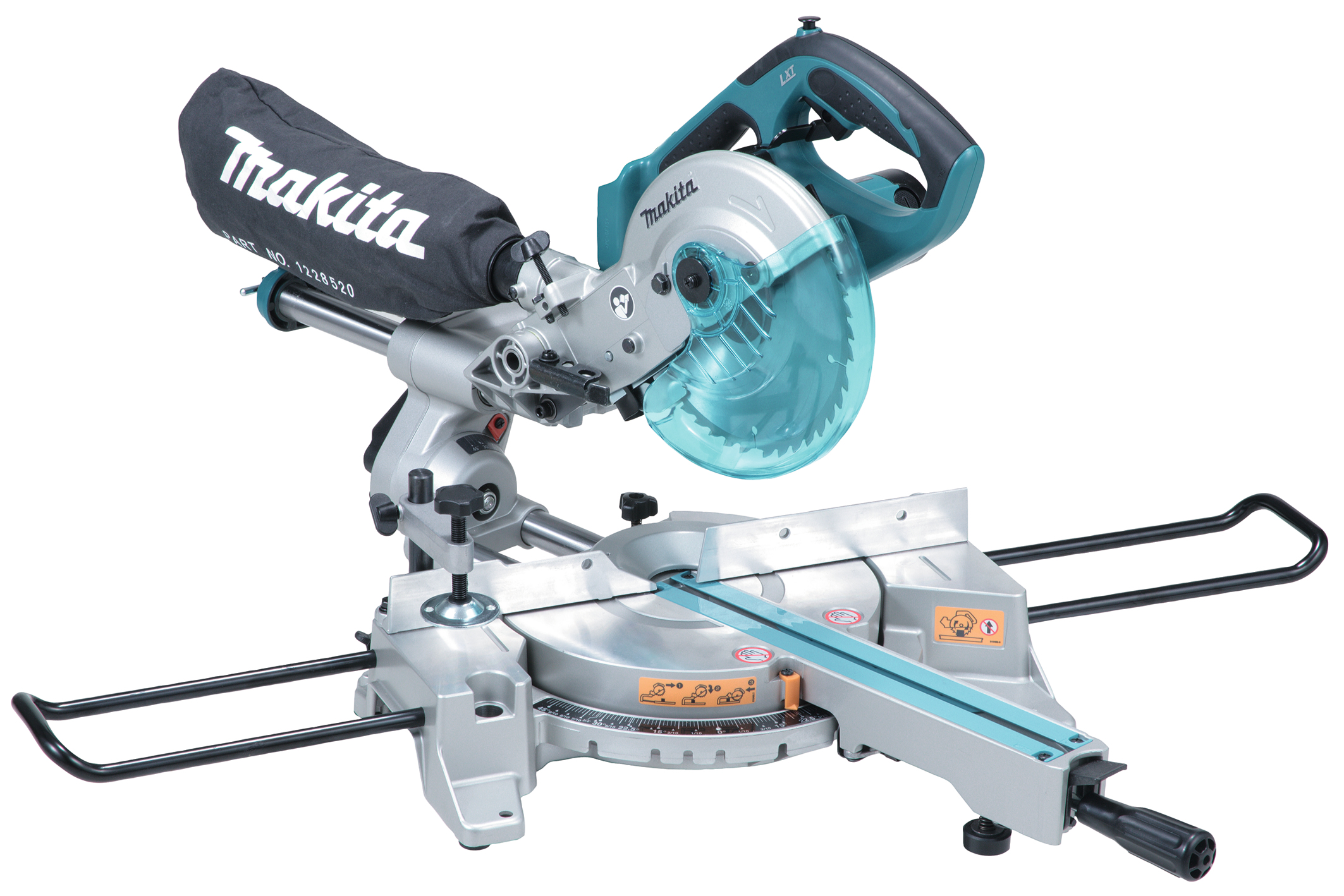

Slide Compound Miter Saw LXT
DLS713Z
18V LXT • 190 mm • 2 200 min-1
A light and powerful slide compound saw for builders
A cordless slide compound saw for cross and mitre cutting with a blade diameter of 190 mm. An ideal choice for construction and other demanding sectors. Four steel poles with four linear ball bearings ensure stable and accurate cutting. Tool only, battery and charger not included.
• Battery protection system automatically shuts off power when the battery level is low
• Body model - delivered without battery and charger.
| Bore Size (Arbor Diameter) | 20 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 52 x 212 mm |
| Capacity 90° | 52 x 300 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 25 x 300 mm |
| Tool weight with battery (EPTA) | 12,4 - 12,7 kg |
| Battery Voltage | 18 V |
| Max. Bevel Range (Left) | 45 / 5 º |
| Sound Pressure Level | 88 dB(A) |
| Product Dimensions (L x W x H): | 655 x 430 x 454 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 98 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 12,0 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Tool Category | Sawing |
| Blade Diameter | 190 mm |
| No load speed | 2200 min⁻¹ |
| Max. Mitre Range (Left) | 47 / 57 º |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DLS713Z
