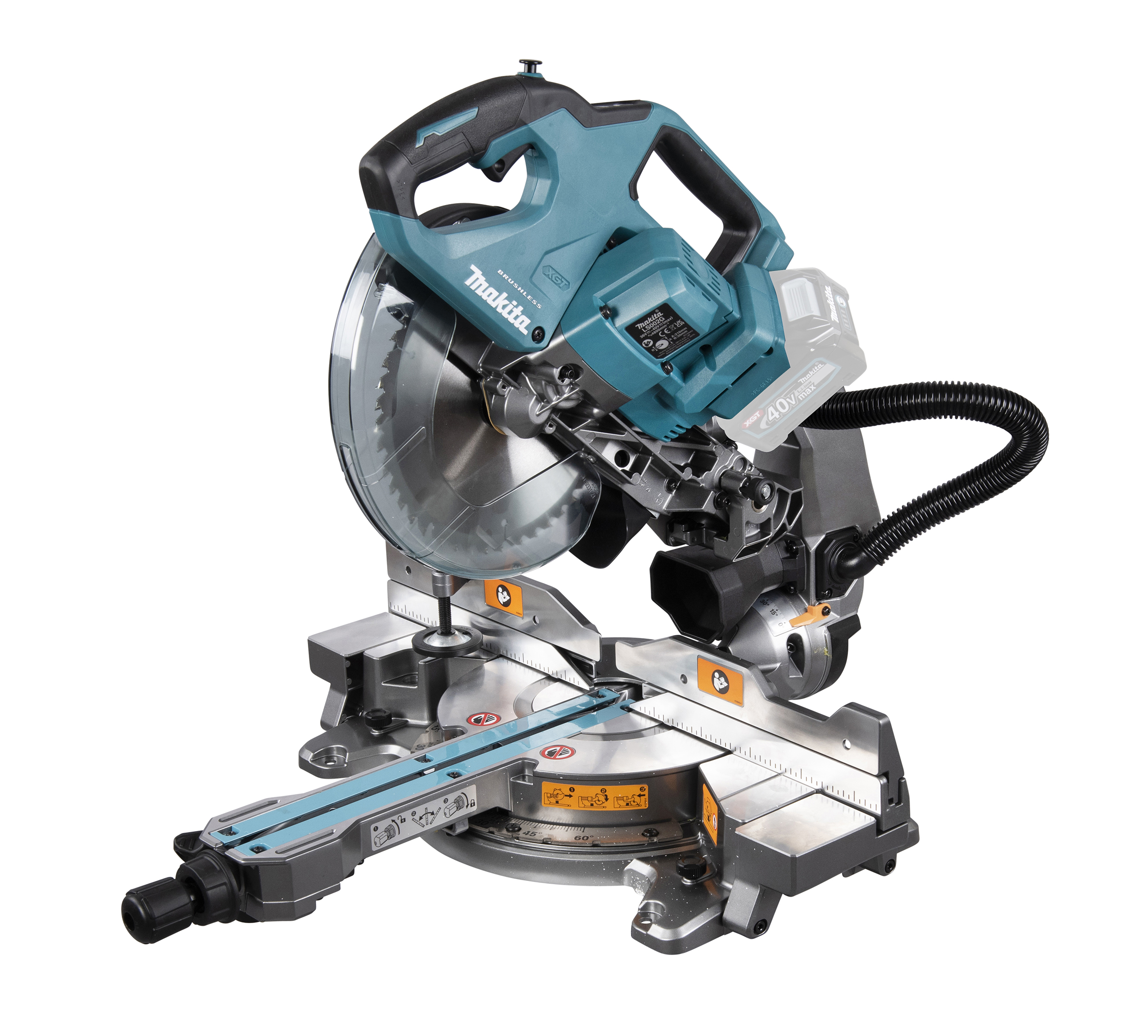

Slide Compound Miter Saw XGT
LS002GZ01
40V MAX XGT • 216 mm
Efficient brushless cordless saw with a remote start for dust extraction (AWS) for demanding use
Powered by XGT® 40V max battery this brushless saw is extremely powerful. Equipped with single sliding system and rail-forward design enables saw to be placed against wall for maximising work space. Max cutting capacity (90 degrees) 70 x 312 mm. Twin led lights illuminate the working area.
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Tool weight with battery (EPTA) | 16,4 - 17,6 kg |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 70 x 220 mm |
| Capacity 90° | 70 x 312 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 50 x 312 mm |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Sound Pressure Level | 89 dB(A) |
| Max. Bevel Range (Left) | 48 / 48 º |
| Product Dimensions (L x W x H): | 702 x 551 x 557 mm |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 15,3 kg |
| System | XGT 40Vmax/80V max |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 100 dB(A) |
| Voltage XGT | 1 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Blade Diameter | 216 mm |
| Tool Category | Sawing |
| AWS FUNCTION | YES |
| Bevel capacity right 45° (Miter 0°, Bevel R 45°) | 30 x 312 mm |
| No load speed | 4800 min⁻¹ |
| Max. Mitre Range (Left) | 60 / 60 º |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: LS002GZ01
