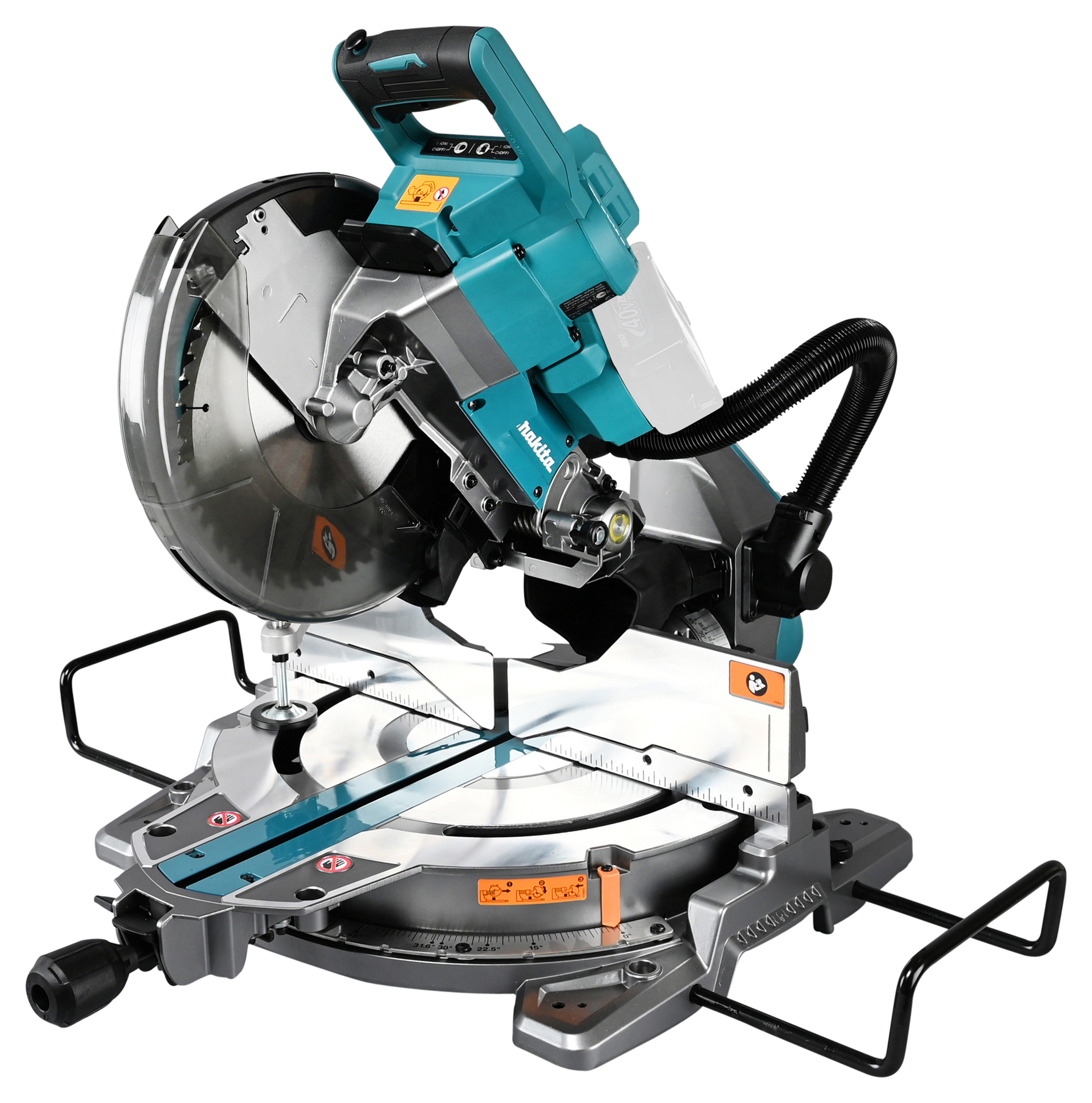

Slide Compound Miter Saw XGT
LS004GZ
40V MAX XGT • 260mm
260mm Cordless Slide Compound Miter Saw Powered by 40V MAX Lithium-Ion Battery
Precise cutting and user’s comfort. Delivers high performance with 3,600 RPM for fast and smooth cutting (Sold without battery and Charger)
• Brushless maintenance-free and long-life motor
• High precision cutting
• Rail-forward design enables to be placed against a wall for maximizing work space
• Single sliding system enables smooth operation to produce superior cuts
• Large bevel lock lever; Easy to operate even if the machine is placed close to wall, because you need not reach for the rear of the machine to turn the lever
• Precision miter angle adjustment; Can be achieved simply by turning a knob on the turn base
• Extendable sub tables help stabilize long material cuts
• Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
• Built-in fluorescent light illuminates cutting edge
• Front knob for easy bevel angle adjustment
• One-touch slide lock; Can be easily locked/unlocked by inserting/removing the lock pin
• Ergonomic rubberized D-handle design for better fit and added comfort
• Soft start feature for smooth start-ups
• Electric brake for maximum productivity and increased operator safety
• Battery protection circuit protects against overloading, over-discharging and over-heating
• Single sliding system enables smooth operation to produce superior cuts
• Extendable sub tables help stabilize long material cuts
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Tool weight with battery (EPTA) | 26,6 - 27,8 kg |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 91 x 279 / 68 x 218 mm |
| Capacity 90° | 91 x 279 / 68 x 310 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 58 x 279 / 42 x 310 mm |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Sound Pressure Level | 91 dB(A) |
| Max. Bevel Range (Left) | 48 / 48 º |
| Product Dimensions (L x W x H): | 805 x 644 x 660 mm |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 25,1 kg |
| System | XGT 40Vmax/80V max |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 100 dB(A) |
| Voltage XGT | 1 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Blade Diameter | 260 mm |
| Tool Category | Sawing |
| AWS FUNCTION | YES |
| Bevel capacity right 45° (Miter 0°, Bevel R 45°) | 43 x 279 / 29 x 305 mm |
| Max. Mitre Range (Left) | 60 / 60 º |
| No load speed | 3600 min⁻¹ |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: LS004GZ
