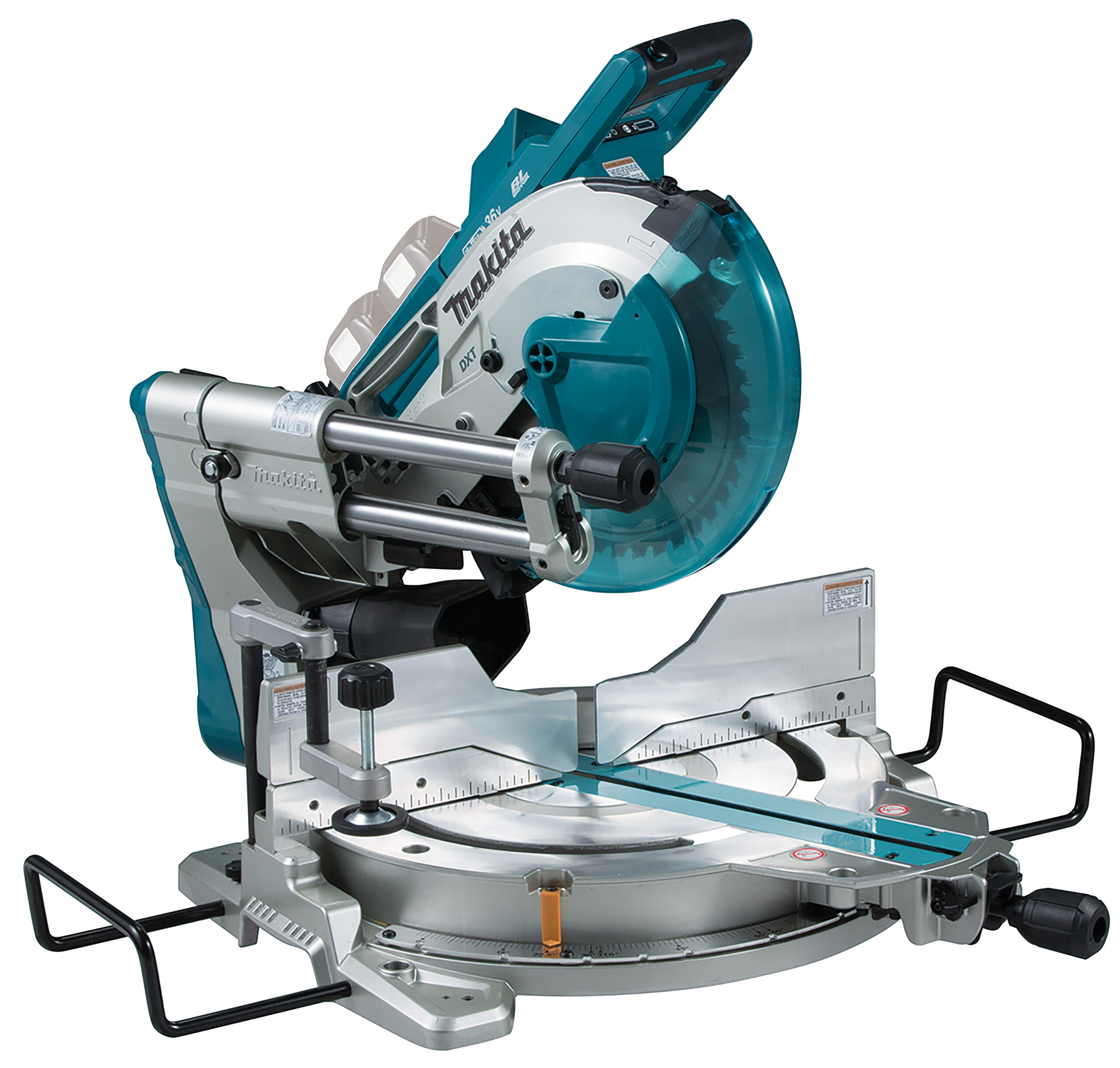

Slide Compound Miter Saw LXT
DLS111ZU
36V (18Vx2) LXT • 260 mm • 4 400 min⁻¹
Efficient brushless cordless saw with a AWS remote start for dust extraction for demanding use
An extremely powerful and quick high-capacity saw with a dual slide system for cutting large pieces. Its two 18V LXT batteries and brushless motor achieve 18V+18V capacity. Its cutting speed is comparable to electric mitre saws. Battery and charger not included.
• Battery protection system automatically shuts off power when the battery level is low
• Brushless maintenance-free and long-life motor
• Can be used cordlessly against AWS vacuum cleaner.
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 91 x 197 / 68 x 218 mm |
| Capacity 90° | 91 x 279 / 68 x 310 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 58 x 279 / 42 x 310 mm |
| Tool weight with battery (EPTA) | 26,6 - 27,3 kg |
| Brushless Motor | YES |
| Battery Voltage | 2 x 18 V |
| Laser Class | 2M |
| Max. Bevel Range (Left) | 48 / 48 º |
| Sound Pressure Level | 92 dB(A) |
| Product Dimensions (L x W x H): | 805 x 644 x 660 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 102 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 25,1 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Tool Category | Sawing |
| Blade Diameter | 260 mm |
| No load speed | 4400 min⁻¹ |
| AWS FUNCTION | YES |
| Bevel capacity right 45° (Miter 0°, Bevel R 45°) | 43 x 279 / 29 x 305 mm |
| Max. Mitre Range (Left) | 60 / 60 º |
• With Wireless Unit and Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DLS111ZU
