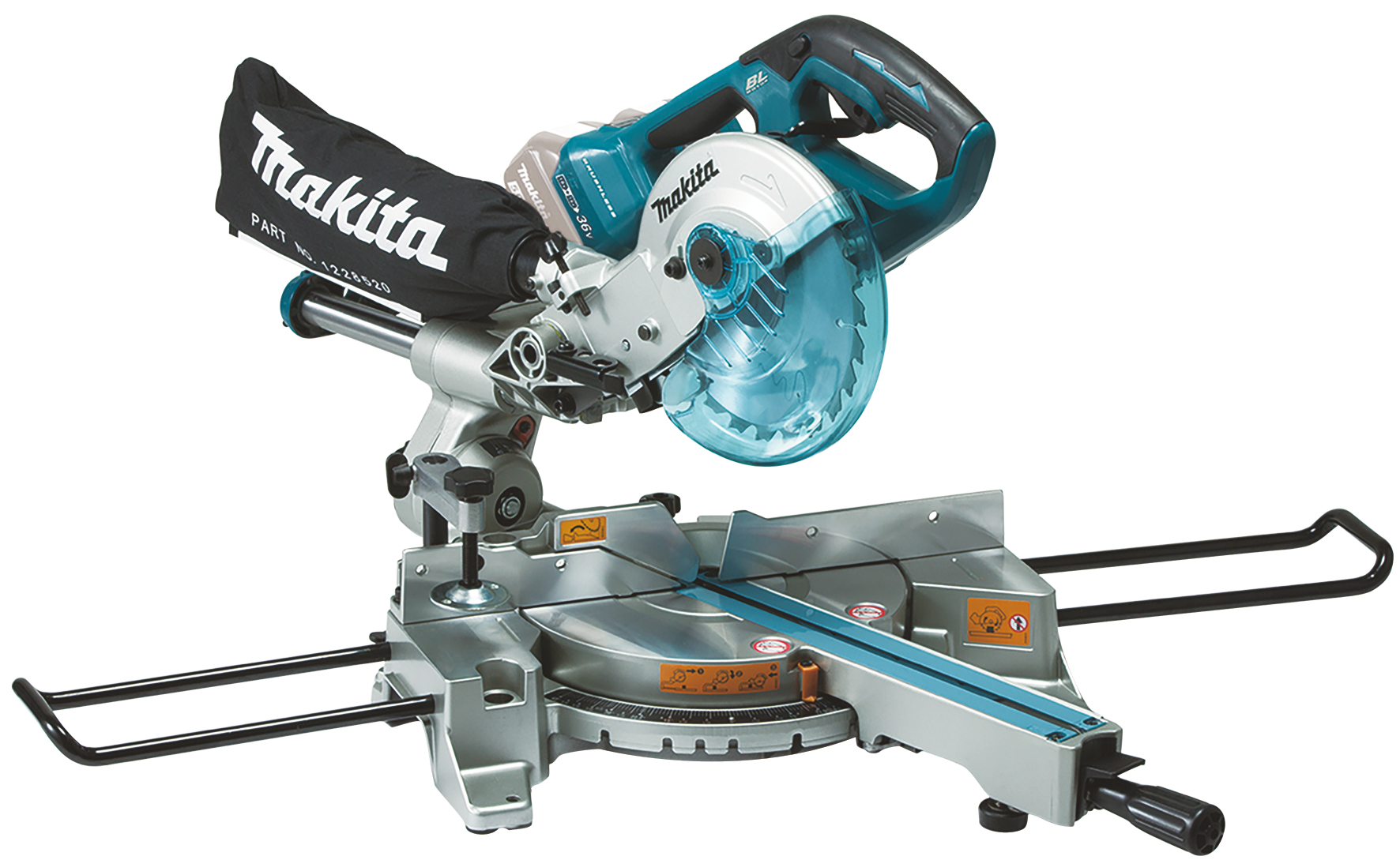

Slide Compound Miter Saw LXT
DLS714NZ
36V (18Vx2) LXT • 190 mm • 5 700 min⁻¹
Efficient brushless cordless saw for demanding use
A quick and efficient saw with a dual slide system for cutting large pieces as well as skirting boards. The tool’s two 18V LXT batteries and brushless motor achieve a 18V+18V capacity, providing cutting speed that is comparable to electric mitre saws. Battery and charger not included.
• Battery protection system automatically shuts off power when the battery level is low
• Body model - delivered without battery and charger.
• Brushless maintenance-free and long-life motor
| Bore Size (Arbor Diameter) | 20 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 52 x 212 mm |
| Capacity 90° | 52 x 300 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 40 x 300 mm |
| Tool weight with battery (EPTA) | 14.4 - 14.7 kg |
| Brushless Motor | YES |
| Battery Voltage | 2 x 18 V |
| Max. Bevel Range (Left) | 45 / 5 º |
| Sound Pressure Level | 88 dB(A) |
| Product Dimensions (L x W x H): | 655 x 430 x 445 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 97 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 13,4 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Tool Category | Sawing |
| Blade Diameter | 190 mm |
| No load speed | 5700 min⁻¹ |
| Max. Mitre Range (Left) | 47 / 57 º |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DLS714NZ
