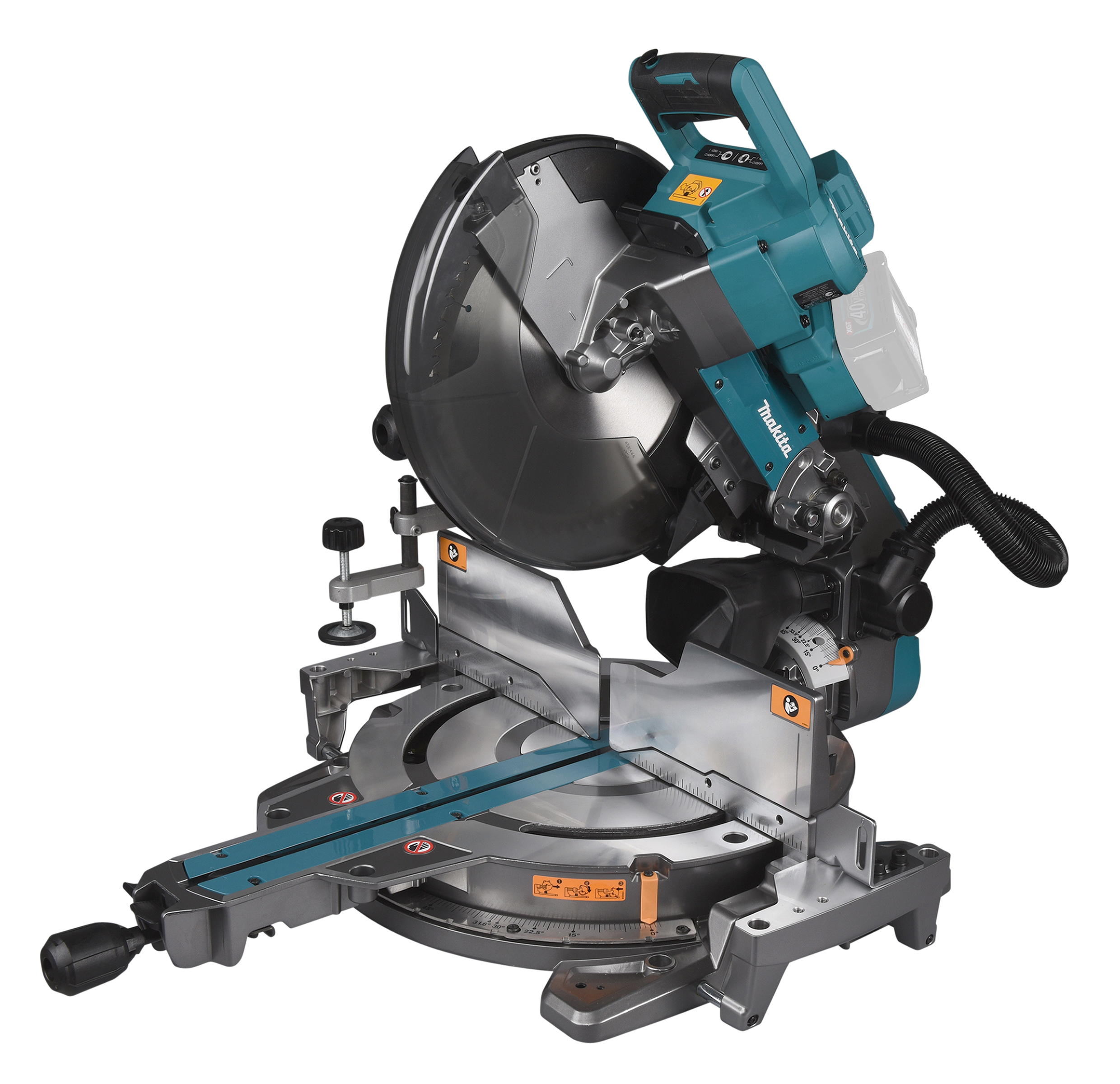

Slide Compound Miter Saw XGT

• High power delivered by 40Vmax BL motor enables to cut as fast as if you were using a corded slide compound miter saw

• Vacuum cleaner activation switch for increased comfort

• LED light with ink line aligning funciton

• Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth

• Large turn base supports workpiece securely for increased stability

• Integrated guide fences for increased rigidity and high cutting accuracy

• Front knob for easy bevel angle adjustment

• Holders are provided on both sides of the tool to hold long workpieces horizontally

• Battery protection system automatically shuts off power when the battery level is low

Bore Size (Arbor Diameter)	30 mm
Tool weight with battery (EPTA)	30,5 - 31,7 kg
Capacity 45° (Miter R/L 45°, Bevel 0°)	107 x 255 / 92 x 268 mm
Capacity 90°	107 x 363 / 92 x 382 mm
Capacity 45° left (Miter 0°, Bevel L 45°)	71 x 363 / 61 x 382 mm
Battery Voltage	40 V
Brushless Motor	YES
Sound Pressure Level	91 dB(A)
Max. Bevel Range (Left)	48 / 48 º
Product Dimensions (L x W x H):	898 x 690 x 725 mm
Vibration Uncertainty (K Factor)	1,5 m/s²
Product net weight (new)	28,9 kg
System	XGT 40Vmax/80V max
Vibration Level (3 axes)	≤ 2,5 m/s²
Sound Power Level (LWA)	100 dB(A)
Voltage XGT	1
Noise Uncertainty (K Factor)	3 dB(A)
Vacuum cleaner connection Ø in / out	35/40 mm
Blade Diameter	305 mm
Tool Category	Sawing
AWS FUNCTION	YES
Bevel capacity right 45° (Miter 0°, Bevel R 45°)	54 x 363 / 44 x 382 mm
No load speed	3600 min⁻¹
Max. Mitre Range (Left)	60 / 60 º

• Sold without Battery or Charger

Find available product documentation using the Makita UAE support resources below.

Model: LS003GZ

LS003GZ
