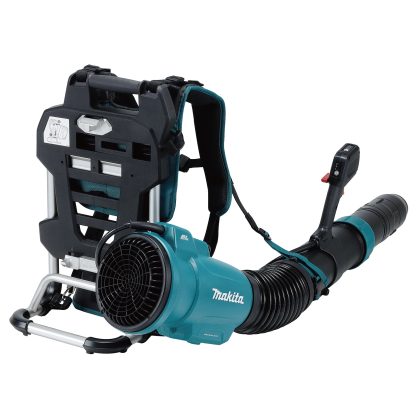

Backback Blower 36V UB004CZ
Backback Blower 36V UB004CZ

UB004CZ- Backback Blower

UB004CZ

36V • 28 N • 20.9 m²/min • 23,800 minˉ¹

Powered by Portable Power Pack Units.

The high blowing efficiency (28N) of this device is comparable to that of a 65cm³ engine backpack blower. The airflow path has been optimized from a curved line to a straight.

Shares
sharethis sharing button Share

User Benefits

  • 3 speed mode, Boost mode, Variable Speed Control by Trigger + Cruise Control Lever
  •  The machine operates at a high blowing force of 25N with no time limit, and at 28N in Boost mode with a time limit
  •  The airflow path from the fan to nozzle is designed to be straight, providing a high blowing force
  •  Improved backpack harness section for more comfortable backpacking experience
  •  The grip position is adjustable forward / backward and left / right to suit user’s size or work posture
  •  Continous rum time @5N : 500 min / @25N : 55 min
  •  eXtreme Protection Technology / IPX4 compatible : High water-resistance allows to operate the machine even if it is wet with water
  •  Use with optional Portable Power Pack Units PDC1500 or PDC1200
Specification
Blowing force 5, 15, 25 N
Max. Air Velocity 33.2 / 59.0 / 76.3 m/s
Air volume 8.5 / 15.2 / 19.7 m³/min
No load speed 0 - 22000 min⁻¹
Continuous Use PDC1200 500 - 55 min
Sound Pressure Level 82,3 dB(A)
Sound Power Level (LWA) 96,1 dB(A)
Battery Voltage 36 V
Tool weight with battery (EPTA) 18.6 - 16.5 kg
