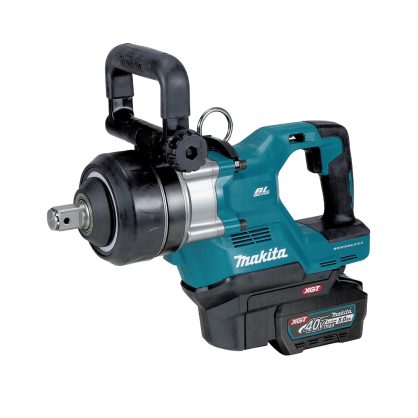

Cordless Impact Wrench

TW009GZ

40V MAX XGT • BL • XPT

Cordless 25.4mm (1″) Square Drive D-Handle Impact Wrench with Short Anvil.

Delivers a powerful combination of high torque and excellent manoeuvrability, designed to replace air impact wrenches for tightening large-diameter bolts. Supplied without battery and charger, and packaged in a durable plastic carry case.

Shares
sharethis sharing button Share

Product Description

Makita TW009GZ is a professional-grade, heavy-duty cordless impact wrench engineered for demanding industrial applications such as steel frame construction and structural assembly work.

User Benefits

  • Pneumatic Replacement: Delivers up to 3,150 Nm of fastening torque, providing the power of an air impact wrench without the need for hoses or compressors.
  • Full Speed Mode: Reaches maximum velocity with significantly less trigger pull, reducing hand fatigue during repetitive, high-volume fastening tasks.
  • Versatile Power Settings: Features a 4-stage electronic impact selection (Max, Hard, Medium, Soft) to prevent over-tightening or damaging smaller bolts.
  • Auto-Stop System: Offers three reaction modes for both forward and reverse rotations, preventing nuts from flying off or bolts from being over-stressed.
  • Shadow-Free Workspace: The ring illumination LED surrounds the drive, eliminating the “socket shadow” typically found with single-bulb designs for better visibility in tight, dark spaces.
  • Low Reaction Force: A vertical motor design minimizes the torque reaction felt by the user at startup, improving safety and tool control.
  • Toolless Side Handle: Can be adjusted 360° without additional tools, allowing users to quickly adapt to different working angles and positions.
  • Battery Vibration Protection: An independent, rubberized battery housing isolates the power source from the tool’s impact vibrations, protecting terminals and extending battery life.
  • Jobsite Resilience: Built with XPT (eXtreme Protection Technology) to guard against dust and water in harsh outdoor or industrial environments.
  • Glove-Friendly Trigger: The large two-finger trigger is shaped specifically for easy operation while wearing heavy industrial gloves.
  • Tool Hanger Ring: Includes a large steel ring for easy storage or hanging on framework during steel erection work.
Specification
Square Drive 1” (25.4 mm)
Anvil Length 163 mm
Max Fastening Torque 3,150 N·m
Nut-busting Torque 4,000 N·m
Fastening Torque Max/ Hard / Med. / Soft: 2,850 /1,600 / 1,000 / 600 N·m
Fastening Capacities Standard Bolt: M27 - M45 / High Strength Bolt: M20 - M33
No Load Speed Max/Hard/Med./Soft: 0-1,200/0-850/0-700/0-600 min-1
Impacts per minute (IPM) Max/Hard/Med./Soft: 0-1,750/0-1,500/0-1,300/0-1,200
Dimensions(LxWxH) 435 x 135 x 297 mm (with BL4050F)
Net Weight 10.0 kg (without battery)
