Product Description

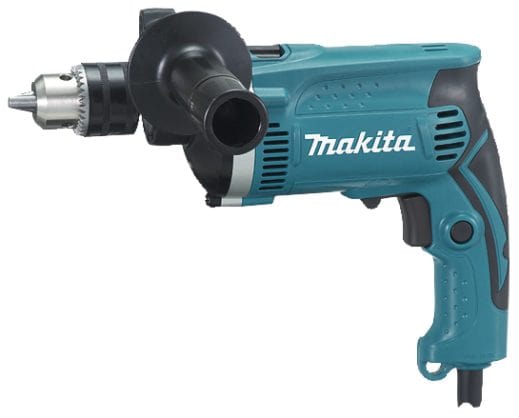

Lightweight 710 W impact drill with drilling and percussion function. Slim grip frame and rubber grip for easy operation. The machine has an adjustable speed. Comes in a case.
User Benefits
- Cast aluminum gear housing for less weight and increased durability
- Double insulated
- Rubberized soft grip for more comfort and control
- Variable speed control dial enables user to match the speed to the application
| Specification | |
|---|---|
| MAXIMUM OUTPUT POWER | 710 W |
| IMPACT | 0 - 48 000 min⁻¹ |
| POWER SUPPLY CORD | 2,0 m |
| SOUND POWER LEVEL (LWA) | 108 dB(A) |
| SOUND PRESSURE LEVEL (LPA) | 97 dB(A) |
| NOISE UNCERTAINTY (K FACTOR) | 3 dB(A) |
| VIBRATION LEVEL (3 AXES) | ≤ 2,5 m/s² |
| VIBRATION UNCERTAINTY (K FACTOR) | 1,5 m/s² |
| WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003) | 2,1 kg |
| PRODUCT DIMENSIONS (L X W X H): | 296 x 75 x 204 mm |
| NO LOAD SPEED | 0 - 3200 min⁻¹ |
| MAX. DRILLING DIAMETER IN WOOD | 30 mm |
| MAX. DRILLING DIAMETER IN CONCRETE | 16 mm |
| MAX. DRILLING DIAMETER IN STEEL | 13 mm |
| DRILL CHUCK CAPACITY | 1,5 - 13 mm |
| COLLAR CLAMPING DIAMETER | 43 mm |
| SIDE GRIP | Yes |
| VIBRATION LEVEL (3 AXES), IMPACT DRILLING | 17 m/s² |
-
