Product Description

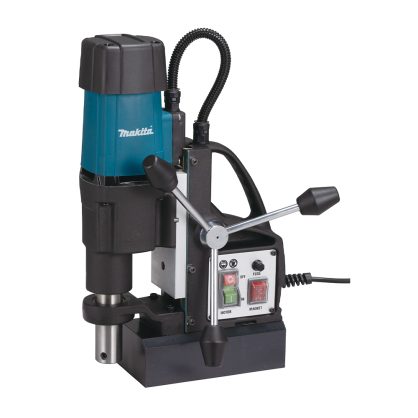

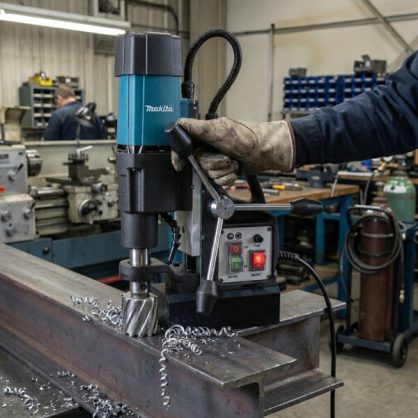

Magnetic Drill, developed with a maximum drilling diameter of ø50 mm. This new model has been engineered with significant improvements in magnetic clamping performance, structural compactness, and stroke versatility, making them the ideal choice for professional metalworking, steel fabrication, and on-site drilling applications.
User Benefits
- All-in-one design combining magnetic base, drill stand and drill motor
- Integrated oil supply system for smoother cutting and extended cutter life
- Larger electromagnetic base for superior holding force and drilling stability
- Improved magnetic clamping force (Up to 37.5%) ensures safer and more reliable operation
- Longer Stroke Length: Optimized for precision work with shorter, more controlled feed
- Flexible Chuck System: Flexible chuck compatibility expands the range of bits and applications
- Light weight: Lighter weight improves operator comfort and efficiency for extended field use
- 2-Speed
| Specification | |
|---|---|
| Continuous Rating Input | 1,200W |
| Cutting capacity diameter | 50 mm |
| Cutting capacity depth | 50 mm |
| No load speed | 450 / 750 min-1 |
| Magnetic clamping force | 12,000 N |
| Dimensions (LxWxH) | 270 x 156 x 432 mm |
| Net weight | 17.5 kg |
