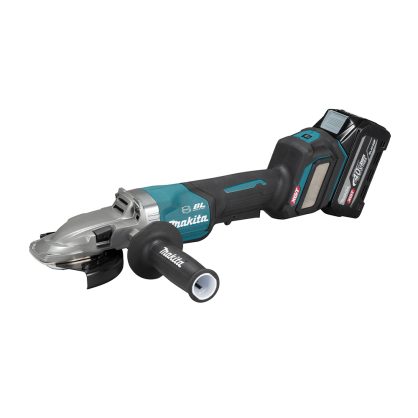

Flat‑Head Angle Grinder

GA056GZ

40V MAX XGT • 125mm • Paddle Switch • BL Motor • AFT •XPT

Cordless flat-head angle grinder powered by a 40Vmax XGT Li-Ion battery.

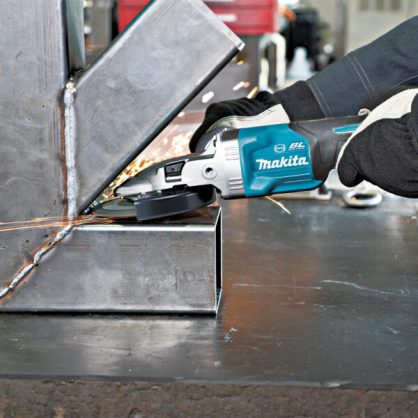

Features a paddle switch for improved control and safety. The reduced access angle at the tip provides excellent workability for deburring in confined or recessed areas. Equipped with a newly designed tool-less wheel cover for flat-head angle grinders, enabling access at angles as small as 39°.

download pdf
Shares
sharethis sharing button Share

Product Description

Makita GA056GZ 40V Max XGT Brushless 125mm Flat-Head Angle Grinder is the paddle-switch counterpart to the GA055GZ, specifically designed for safety and ergonomics when working in tight 39° angles.

User Benefits

  • Switch Type: Paddle switch (dead-man style) which requires constant pressure to operate, enhancing user safety.
  • No Load Speed: Variable speed from 3,000 to 9,000 RPM.
  • Maximum Grinding Depth: 31 mm.
  • Dimensions: 483 x 140 x 136 mm (when used with a BL4040F battery).
  • Net Weight: 2.5 kg (without battery).
  • Safety Brake: Includes an electric brake that stops the wheel almost instantly once the paddle switch is released.
  • Anti-Restart Function: Prevents the tool from starting up if a battery is inserted while the switch is engaged.
  • Kickback Protection: Features Active Feedback Sensing Technology (AFT), which shuts down the motor if the rotation speed suddenly drops or the wheel jams.
  • Weather Resistance: Built with Extreme Protection Technology (XPT) for enhanced dust and water resistance in outdoor or harsh environments.
  • Tool-less Guard: A newly designed wheel cover allows for quick, tool-free adjustments to reach angles as sharp as 39°.
Specification
Wheel Diameter 125 mm (5")
Minimum Access Angle 39°
No Load Speed 3,000 - 9,000 min-1
Cutting Depth 30 mm
Dimensions (LxWxH) 483 x 140 x 136 mm (with BL4040F)
Net Weight 2.5 kg (without battery)
