Impact Wrench LXT®

DTW1005

18V • 3/4" • 1360 Nm • 0 – 1800 min⁻¹

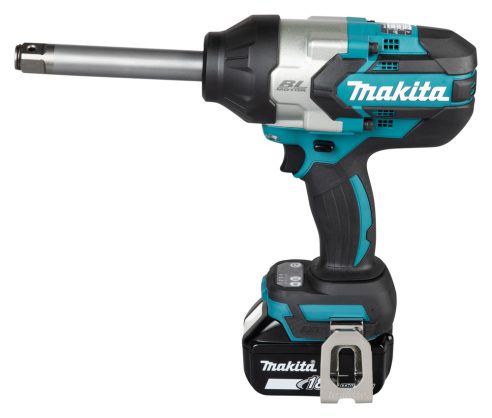

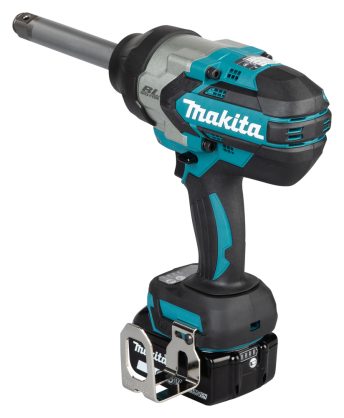

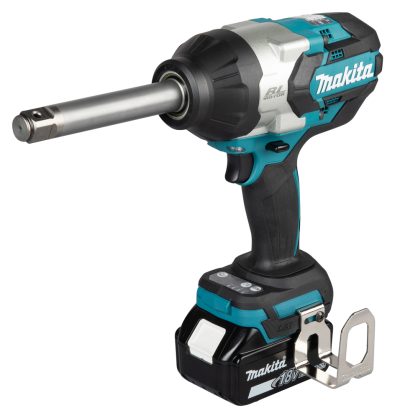

DTW1005 is an Impact Wrench, High power, equipped with a long anvil and powered by a 18V LXT Li-Ion battery.

Shares
sharethis sharing button Share

Product Description

  • High Torque Performance: Up to 1,700Nm nut-busting torque and 1,350Nm maximum fastening torque for heavy-duty applications.
  • Long Anvil Design: 3/4″ square drive with long anvil, ideal for hard-to-reach spaces and deep socket work.
  • Four Selectable Power Modes: Three auto-stop modes (forward/reverse) for efficient bolt/nut tightening and loosening, plus a max power mode.
  • Variable Speed Trigger: Adjust power easily for different tasks, with four electronic speeds from soft (800 RPM) to max (1,800 RPM).
  • Full Speed Mode Button: Achieves maximum speed with reduced trigger pull for improved productivity.
  • Advanced Brushless Motor (BL): Ensures high efficiency, longer run time, and greater durability.
  • eXtreme Protection Technology (XPT): Enhanced dust and water resistance for reliable operation in harsh jobsite environments.
  • Constant Speed Control: Maintains stable torque throughout the battery cycle (except for reverse/max forward).

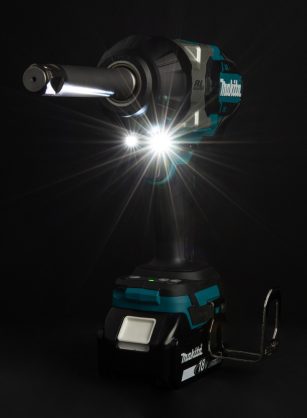

  • Twin Built-in LED Lights: Improves visibility for precise fastening in low-light areas.
  • Ergonomic & Durable Design: Large, two-finger trigger for comfortable continuous operation; robust construction, weighing 3.5 kg (without battery).
  • Accessory Compatibility: Compatible with a wide range of 3/4″ impact sockets and optional extension handle for extra reach.
Specification
Anvil Length 3/4"
Max Fastening Torque 1,350 N·m
Nut-busting Torque 1,700 N·m
No load speed Max / Hard / Med. / Soft: 0 - 1,800 / 0 - 1,000 / 0 - 900 / 0 - 800 min-¹
Impacts per minute (IPM) Max / Hard / Med. / Soft: 0 - 2,200 / 0 - 1,800 / 0 - 1,600 / - min-¹
Fastening Capacities Standard bolt: M12 - M33 | High strength bolt: M10 - M24
Dimensions(LxWxH) 339 x 91 x 291 mm
Net Weight 3.5 kg (without battery)
