Product Description

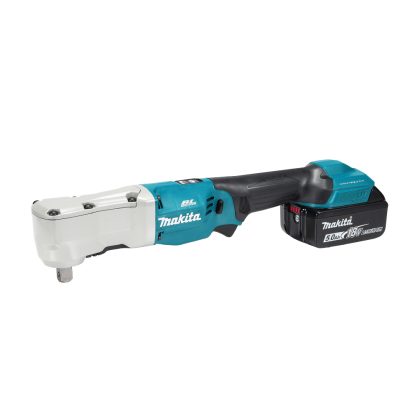

Makita DTL301Z is an ergonomic and powerful angle impact wrench with a 1/2″ square drive and a pin detent anvil. It features a brushless motor for efficiency and durability and is part of the extensive 18V LXT battery platform.
User Benefits

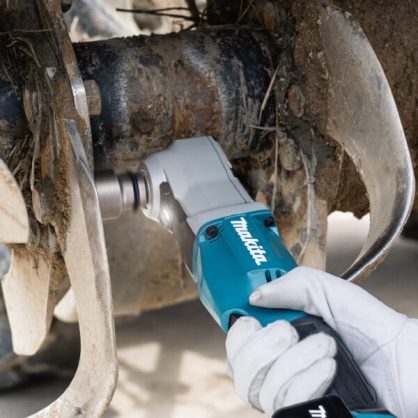

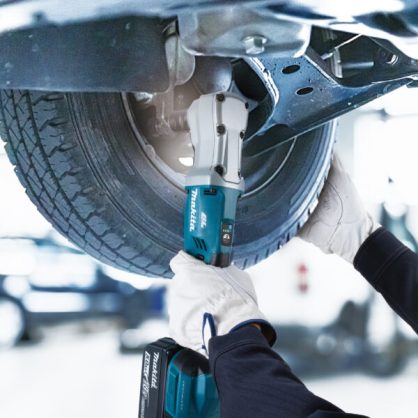

- Access in Confined Spaces: The slim, angled head is the primary benefit, allowing mechanics and technicians to work effectively in restricted areas such as engine bays or around machinery components, which would be impossible with a standard impact wrench.
- Reduced User Fatigue: The tool is well-balanced, with the center of gravity moved closer to the switch to minimize strain on the user’s arm during prolonged use. The ergonomic, soft grip handle further enhances comfort.
- Precision and Control: The three-stage power selection and variable speed trigger allow users to match the torque and speed to the specific job, from delicate tasks to heavy-duty fastening, reducing the risk of damaging materials or fasteners. The auto-stop system adds an extra layer of precision and safety.

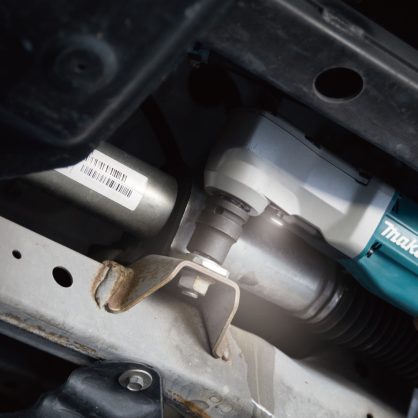

- Illuminated Work Area: The integrated, three-stage adjustable LED job light ensures visibility when working in dark or poorly lit conditions, improving accuracy and safety.
- Cordless Convenience: Being part of the 18V LXT platform provides cordless mobility, eliminating the hassle of cords or air hoses and allowing the tool to be used in remote locations or tight spaces without an external power source.
| Specification | |
|---|---|
| Max Fastening Torque | 310 - 340 N·m |
| Nut-busting Torque | 500 - 530 N·m |
| Square Drive | 12.7 mm (1/2") |
| Capacity | Standard Bolt: M10 - M20 / High Strength Bolt: M10 - M16 |
| No Load Speed | Hard / Med. / Soft: 0 - 3,200 / 0 - 1,500 / 0 - 1,000 min-1 |
| Impacts per minute | Hard / Med. / Soft: 0 - 4,000 / 0 - 2,800 / 0 - 1,800 min-1 |
| Head Height | 81.0 mm (3-3/16") |
| Dimensions (L x W x H) | 396 - 414 x 80 x 86 - 92 mm |
| Net Weight | 1.42 kg (without battery) |
