Product Description

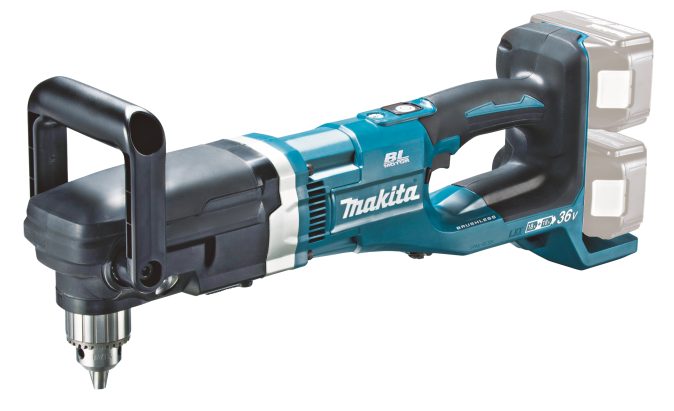

An angle drill with two speed ranges for extremely heavy-duty jobs, such as drilling large holes in wood. The tool runs on two 18V LXT batteries that achieve a voltage of 18V+18V. Max. torque of 136 Nm. Tool only, battery and charger not included.
User Benefits
- Brushless maintenance-free and long-life motor
- LED light illuminates the work site
- Reversing.
| Specification | |
|---|---|
| PLASTIC CARRYING CASE | Yes |
| SOUND PRESSURE LEVEL (LPA) | 85 dB(A) |
| NOISE UNCERTAINTY (K FACTOR) | 3 dB(A) |
| VIBRATION UNCERTAINTY (K FACTOR) | 1,5 m/s² |
| PRODUCT DIMENSIONS (L X W X H): | 538 x 128 x 223 mm |
| NO LOAD SPEED | 0 - 350 / 1400 min⁻¹ |
| MAX. DRILLING DIAMETER IN WOOD | 118 mm |
| MAX. DRILLING DIAMETER IN STEEL | 13 mm |
| DRILL CHUCK CAPACITY | 1,5 - 13 mm |
| SIDE GRIP | Yes |
| BRUSHLESS MOTOR | Yes |
| BATTERY PROTECTION | Yes |
| TOOL WEIGHT WITH BATTERY (EPTA) | 5,7 - 6,4 kg |
| ANGLE LENGTH | 133 mm |
| NOMINAL BATTERY VOLTAGE | 2 x 18 V |
| MAX. FASTENING TORQUE HARD/SOFT | - / 136 Nm |
| VOLTAGE LXT | Yes |
| VIBRATION LEVEL (3 AXES), DRILLING | ≤ 2,5 m/s² |
| BATTERY CHEMISTRY (NI-CD / NI-MH / LI-ION) | Li-ion |
| DRIVING SHANK | 1/2"-20UNF " |
-
