Product Description

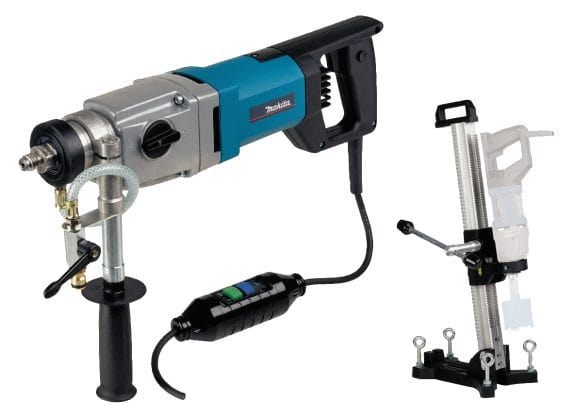

This Diamond Core Drill comes with a powerful motor for instance for the use in electrical and sanitary installation work. The tool has two mechanical gears and variable speed control. Load speed is 0 – 1 570 min-1 and max diamond core capacity is 132 mm. Supplied with side handle and carry case.
User Benefits
| Specification | |
|---|---|
| MAXIMUM OUTPUT POWER | 1700 W |
| SOUND POWER LEVEL (LWA) | 90 dB(A) |
| SOUND PRESSURE LEVEL (LPA) | 85 dB(A) |
| NOISE UNCERTAINTY (K FACTOR) | 3 dB(A) |
| VIBRATION LEVEL (3 AXES) | ≤ 2,5 m/s² |
| VIBRATION UNCERTAINTY (K FACTOR) | 1,5 m/s² |
| WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003) | 6,8 kg |
| EAN | 88381043816 |
| NO LOAD SPEED | 0 - 1100 / - 2300 min⁻¹ |
| MAX. DRILLING DIAMETER IN CONCRETE | 70 / 132 mm |
| SPINDLE THREAD | M18 |
-
