Angle Grinder
Angle Grinder

Angle Grinder

9557HP

840 W • 115 mm • 11 000 min⁻¹

Compact tool for cutting and grinding

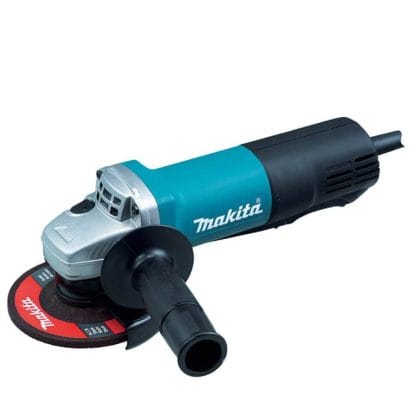

A small angle grinder with 840 W motor and 115 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a paddle switch.

Shares
sharethis sharing button Share

Product Description

A small angle grinder with 840 W motor and 115 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a paddle switch.

User Benefits

  • Compact and lightweight design
Specification
MAXIMUM OUTPUT POWER 840 W
POWER SUPPLY CORD 2,5 m
SOUND POWER LEVEL (LWA) 96 dB(A)
SOUND PRESSURE LEVEL (LPA) 85 dB(A)
NOISE UNCERTAINTY (K FACTOR) 3 dB(A)
VIBRATION UNCERTAINTY (K FACTOR) 1,5 m/s²
PRODUCT WEIGHT 1,7 - 2,2 kg
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003) 1,7 - 2,2 kg
PRODUCT DIMENSIONS (L X W X H): 273 x 129 x 106 mm
EAN 88381095860
NO LOAD SPEED 11 000 min⁻¹
GRINDING DISC DIAMETER 115 mm
BORE (B) 22,23 mm
ANTI-RESTART FUNCTION (NVR SWITCH) Yes
  • User Manual
    PDF
