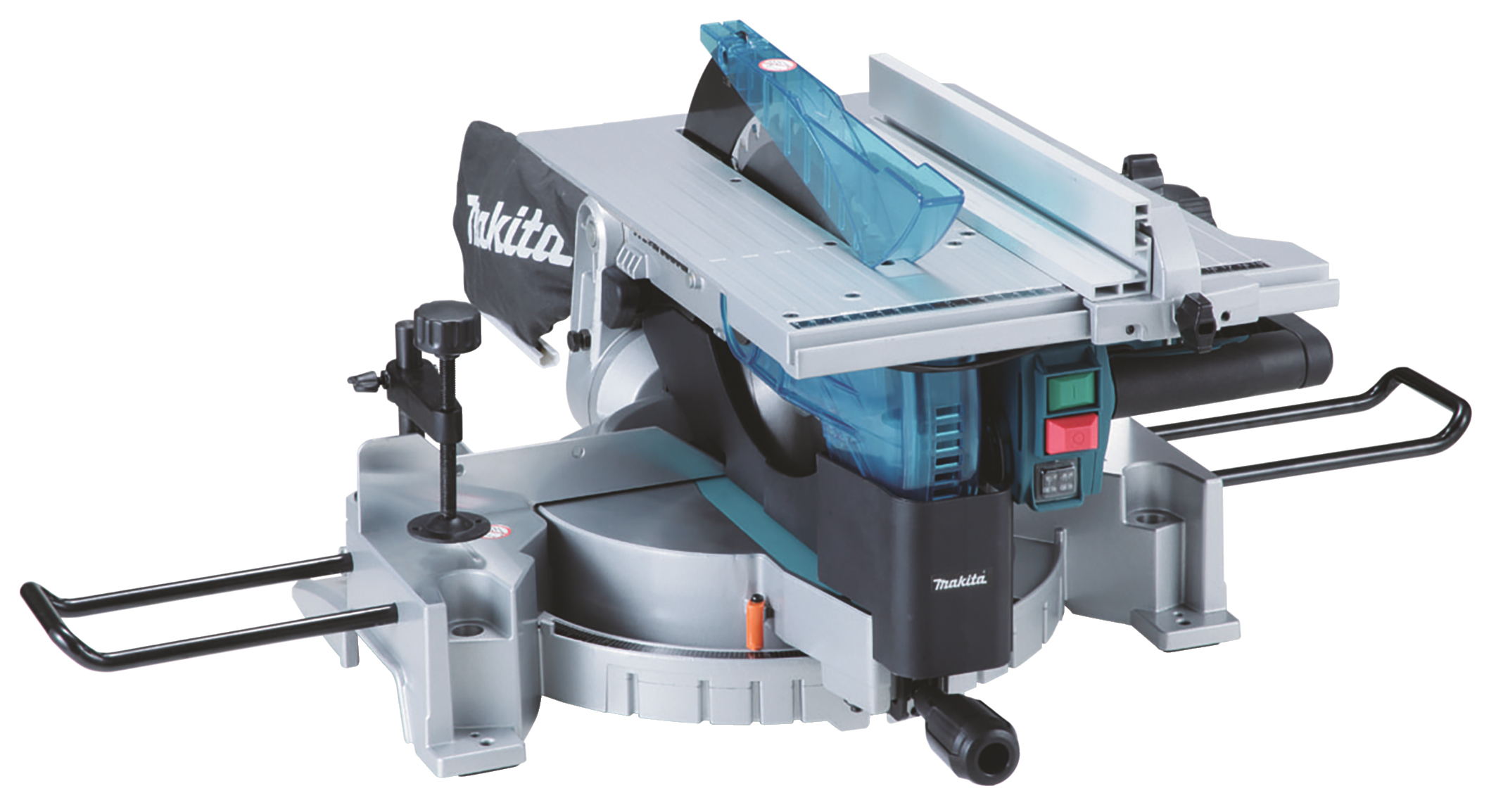

Table Top Mitre Saw
LH1201FL
1 650 W • 305 mm
Easy to change from mitre saw to table saw
A flip-over saw with a powerful 1 650 W motor, 305 mm blade and high sawing capacity. Easy to change from a table saw to a mitre saw. Its versatility makes this tool an ideal choice for construction sites.
| Max. Cutting Height (above Table) at 90° | 52 mm |
|---|---|
| Bore Size (Arbor Diameter) | 30 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 95 x 110 / 62 x 135 mm |
| Capacity 90° | 95 x 155 / 62 x 200 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 64 x 155 / 40 x 200 mm |
| Sound Pressure Level | 93 dB(A) |
| Laser Class | 2 |
| Max. Bevel Range (Left) | 45 / 0 º |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 610 x 535 x 692 mm |
| Continuous Input Power | 1650 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 20,9 kg |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 106 dB(A) |
| Weight Without Cable (EPTA) | 20,9 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32 / 37 mm |
| Blade Diameter | 305 mm |
| Tool Category | Sawing |
| No load speed | 3800 min⁻¹ |
| Max. Mitre Range (Left) | 47 / 52 º |
