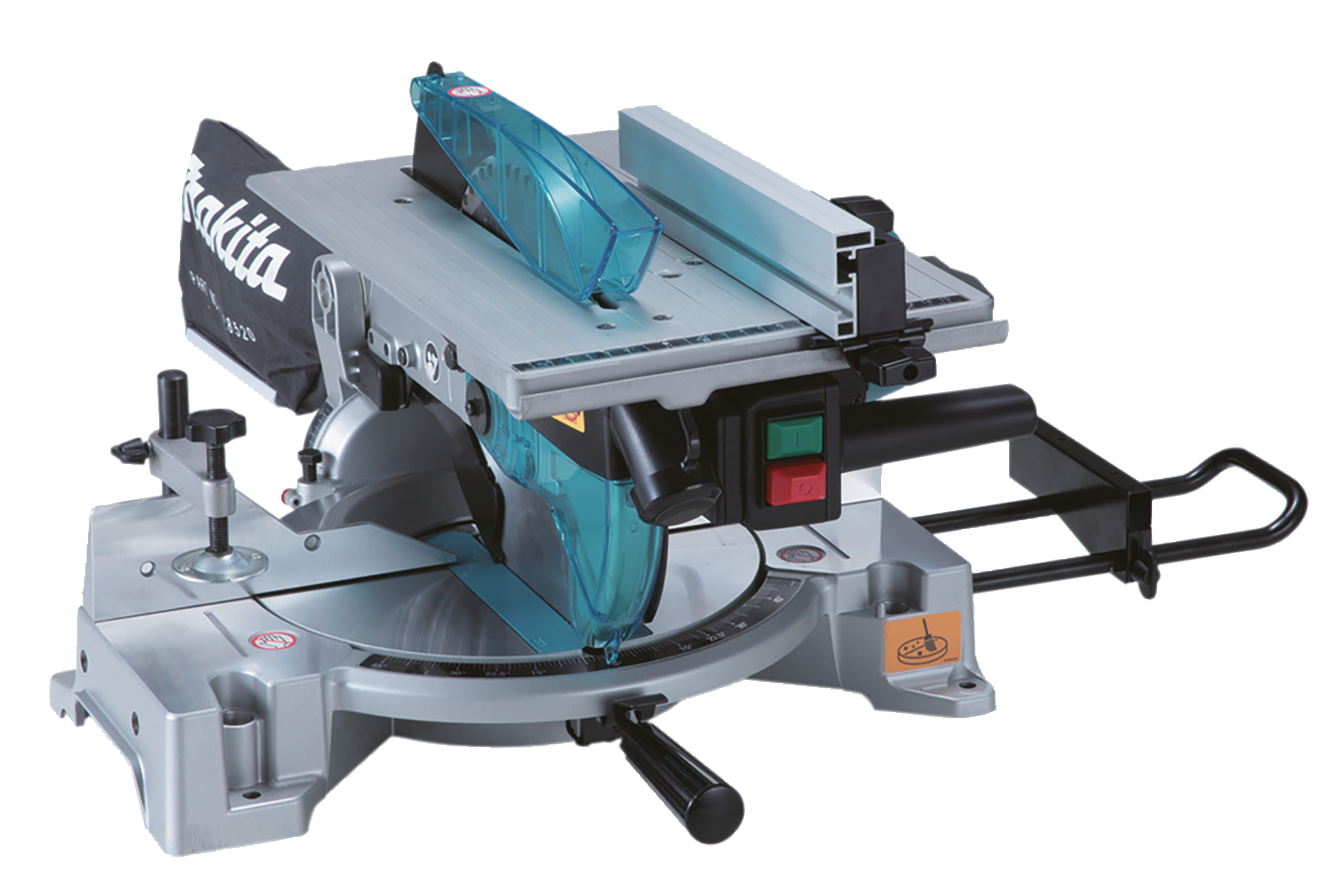

Table Top Mitre Saw
LH1040
1 650 W • 260 mm
Easy to change from mitre saw to table saw
A compact flip-over saw with a powerful 1 650 W motor, 260 mm blade and high sawing capacity. Easy to change from a table saw to a mitre saw. Its versatility makes this tool an ideal choice for construction sites.
• Miter saw and table saw packed in one tool for great versatility
• Lightweight for easy transport to job sites
• Anti-restart switch protects user from accidental start
• Anti-restart switch protects user from accidental start
• Powerful motor allows easy rip cutting
• Electric brake for maximum productivity and increased operator safety
• Dust bag for a cleaner work environment
| Max. Cutting Height (above Table) at 90° | 40 mm |
|---|---|
| Bore Size (Arbor Diameter) | 30 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 93 x 67 / 69 x 85 mm |
| Capacity 90° | 93 x 95 / 69 x 130 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 53 x 95 / 35 x 130 mm |
| Sound Pressure Level | 93 dB(A) |
| Max. Bevel Range (Left) | 45 / 0 º |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 530 x 476 x 535 mm |
| Continuous Input Power | 1650 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 14,3 kg |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 107 dB(A) |
| Weight Without Cable (EPTA) | 14,3 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32 / 37 mm |
| Blade Diameter | 260 mm |
| Tool Category | Sawing |
| Max. Mitre Range (Left) | 45 / 45 º |
| No load speed | 4800 min⁻¹ |
Find available product documentation using the Makita UAE support resources below.
Model: LH1040
