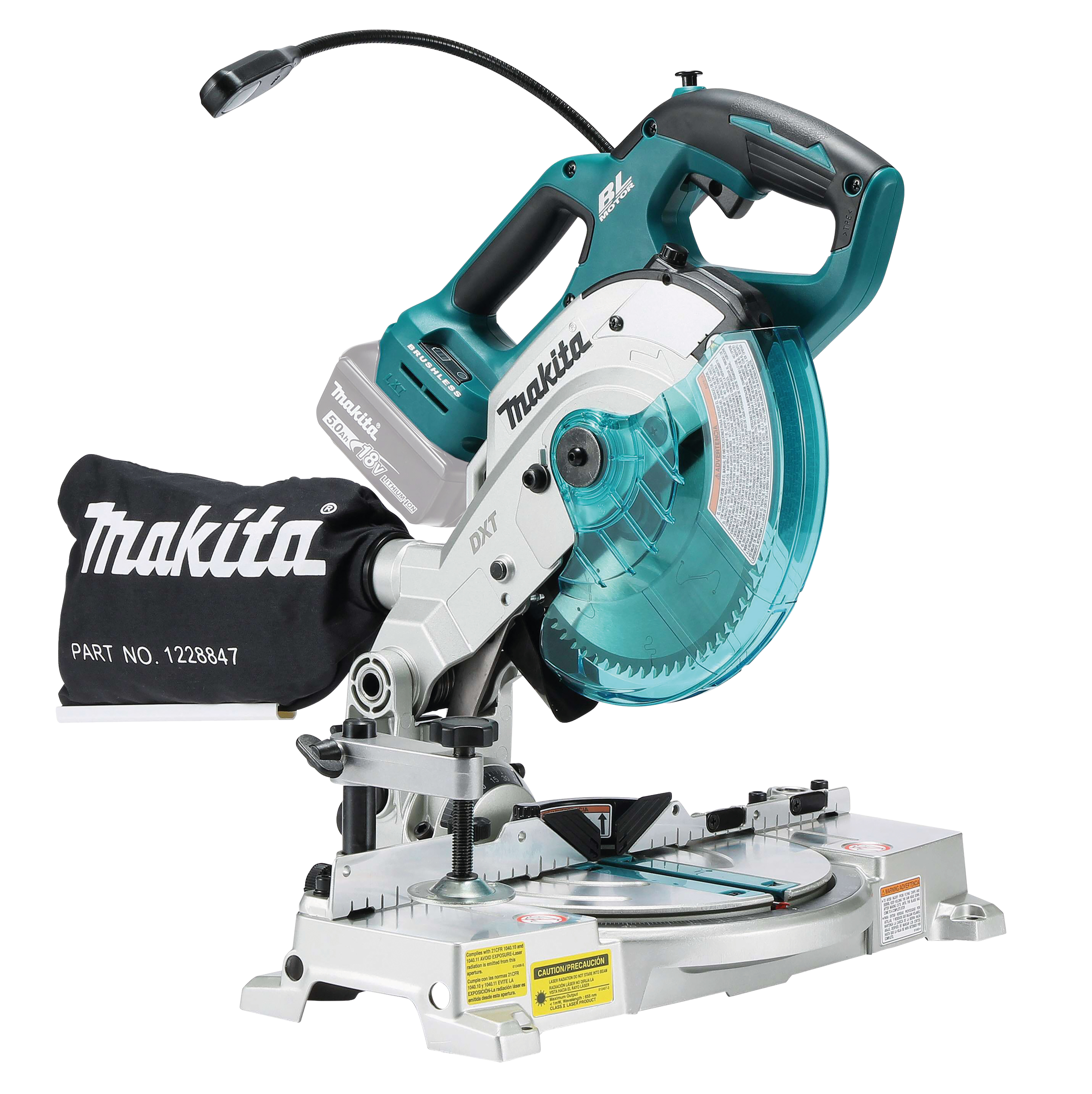

Slide Compound Saw LXT
DLS600Z
18V LXT • 165 mm • 5 000 min⁻¹
A light and compact cordless saw for trim work
A light and accurate battery-powered mitre saw designed for trim work in renovation and construction projects. Cutting capacity of 46 x 92 mm, bevel and mitre cutting left and right. Tool only, battery and charger not included.
• Battery protection system automatically shuts off power when the battery level is low
• Brushless maintenance-free and long-life motor
• Built-in fluorescent light illuminates cutting edge
| Bore Size (Arbor Diameter) | 20 mm |
|---|---|
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 46 x 65 mm |
| Capacity 90° | 46 x 92 mm |
| Capacity 45° left (Miter 0°, Bevel L 45°) | 30 x 92 mm |
| Tool weight with battery (EPTA) | 6,3 - 6,6 kg |
| Brushless Motor | YES |
| Battery Voltage | 18 V |
| Laser Class | 2M |
| Max. Bevel Range (Left) | 46 / 46 º |
| Sound Pressure Level | 90 dB(A) |
| Product Dimensions (L x W x H): | 340 x 400 x 440 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 97 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 5,7 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Tool Category | Sawing |
| Blade Diameter | 165 mm |
| No load speed | 5000 min⁻¹ |
| Bevel capacity right 45° (Miter 0°, Bevel R 45°) | 15 x 92 mm |
| Max. Mitre Range (Left) | 52 / 52 º |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DLS600Z
