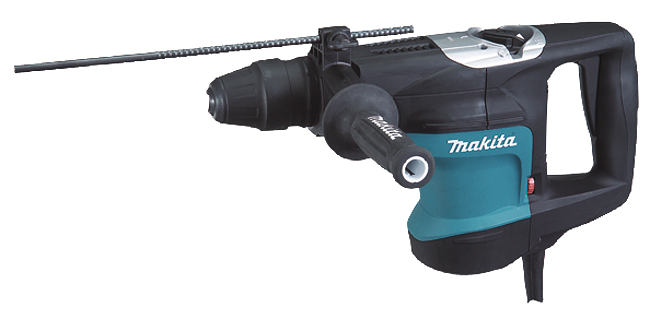

Rotary Hammer
HR3540C
850 W • SDS-Max • 35 mm • 6,3 J
Efficient three-mode rotary hammer
An 850 W rotary hammer adapted for SDS-MAX blades. Masonry drilling capacity of 35 mm and impact energy of 6,3 J. Offers drilling, chipping and chiselling functions. This is an excellent tool for drilling and chipping concrete in renovation and building projects.
• Electronic speed control maintains constant speed under load for smoother, higher quality cutting
• Soft start for smooth start-ups
• 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
• Double insulated
| Plastic Carrying Case | 1 |
|---|---|
| Drilling diameter with TCT core bit | 90 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Max. Drilling Diameter in Wood | 32 mm |
| Vibration Level (3 axes), Impact Drilling | 15,3 m/s² |
| Optimum Drilling Diameter Range in Concrete | 14-25 mm |
| Sound Pressure Level | 93 dB(A) |
| Power Supply Cord | 5,0 m |
| Impact Energy | 5,6 J |
| Continuous Input Power | 850 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration: Chiselling | 11,6 m/s² |
| Product Dimensions (L x W x H): | 439 x 108 x 239 mm |
| Impacts per Minute (IPM) | 1650 - 3300 min⁻¹ |
| Sound Power Level (LWA) | 104 dB(A) |
| Weight Without Cable (EPTA) | 5,2 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Drilling Diameter in Concrete | 35 mm |
| Tool Category | Hammer Drilling and Chiseling |
| Adapted for SDS-MAX bits | 1 |
| No load speed | 315 - 630 min⁻¹ |
