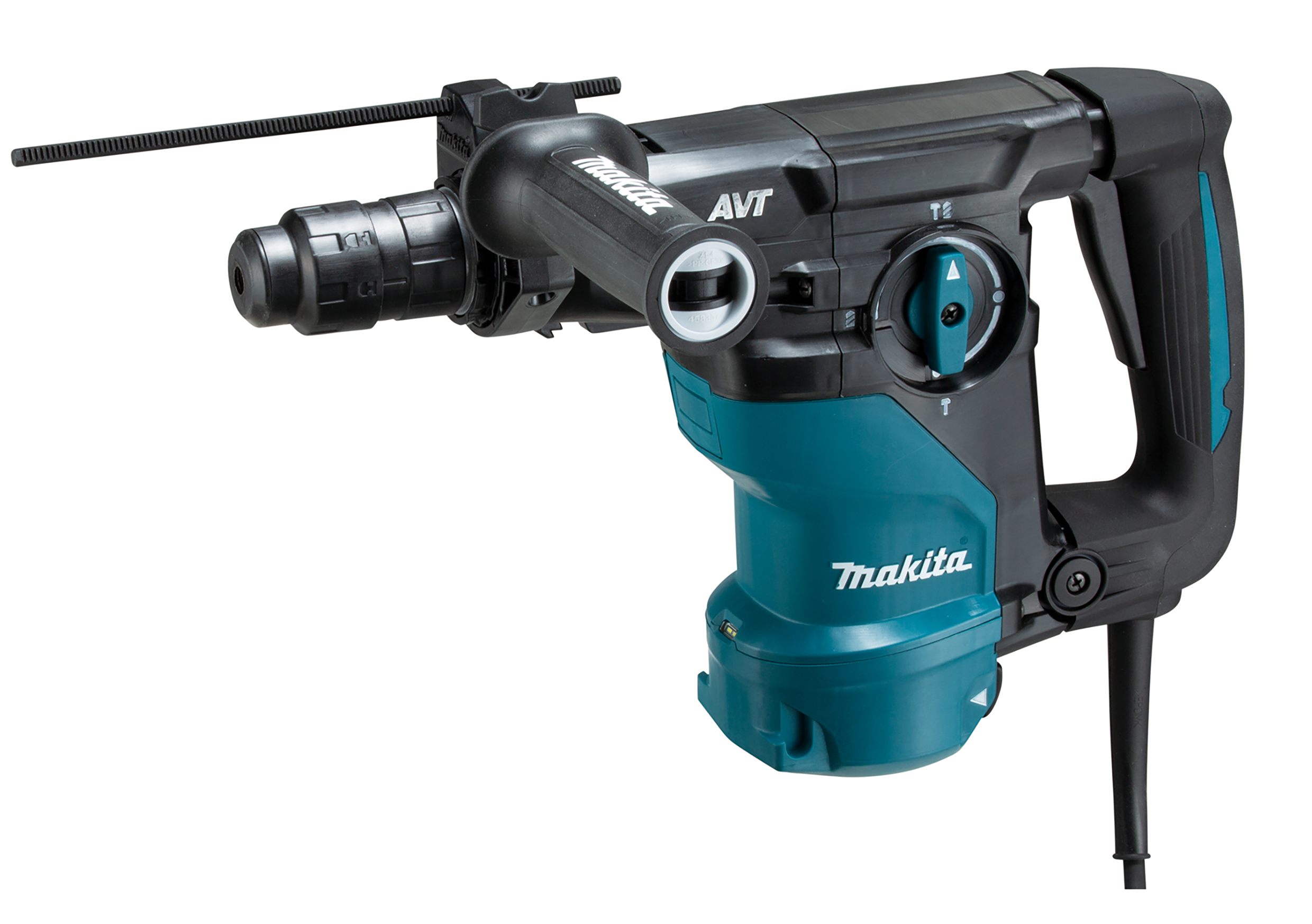

Rotary Hammer
HR3012FCWJ
1050 W • SDS-Plus • 30 mm • 3,6 J
Professional three-mode rotary hammer with quick change drill chuck
Powerful rotary hammer for SDS-Plus blades with unique AVT anti-vibration system. The machine can be drilled without impact or with impact and has a spike function. The motor power is 1050 W and the speed is adjustable from 0-840min-1. The device achieves a 3.6J impact force. The maximum capacity for drilling into concrete is 30 mm.
• High performance SDS-PLUS drill hammer; concrete max. 30 mm.
• Impact drilling, non-impact drilling and spike function
• The rubber coating on the handle ensures a firm working grip
• LED light illuminates the work site
• AVT (Anti-Vibration Technology) ensures extra-low vibration performance
• Quick-change chuck for quick changeover to wood and metal drill bits.
| Drilling diameter with TCT core bit | 80 mm |
|---|---|
| Max. Drilling Diameter in Steel | 13 mm |
| Max. Drilling Diameter in Wood | 32 mm |
| Vibration Level (3 axes), Impact Drilling | 10,5 m/s² |
| Optimum Drilling Diameter Range in Concrete | 8.0-16 mm |
| Sound Pressure Level | 91 dB(A) |
| Power Supply Cord | 2,5 m |
| Impact Energy | 3,9 J |
| Continuous Input Power | 1050 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration: Chiselling | 8,2 m/s² |
| Product Dimensions (L x W x H): | 386 x 98 x 242 mm |
| Impacts per Minute (IPM) | 0 - 4500 min⁻¹ |
| Sound Power Level (LWA) | 102 dB(A) |
| Weight Without Cable (EPTA) | 4,8 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Drilling Diameter in Concrete | 30 mm |
| Adapted for SDS-PLUS bits | 1 |
| Tool Category | Hammer Drilling and Chiseling |
| No load speed | 0 - 840 min⁻¹ |
Find available product documentation using the Makita UAE support resources below.
Model: HR3012FCWJ
