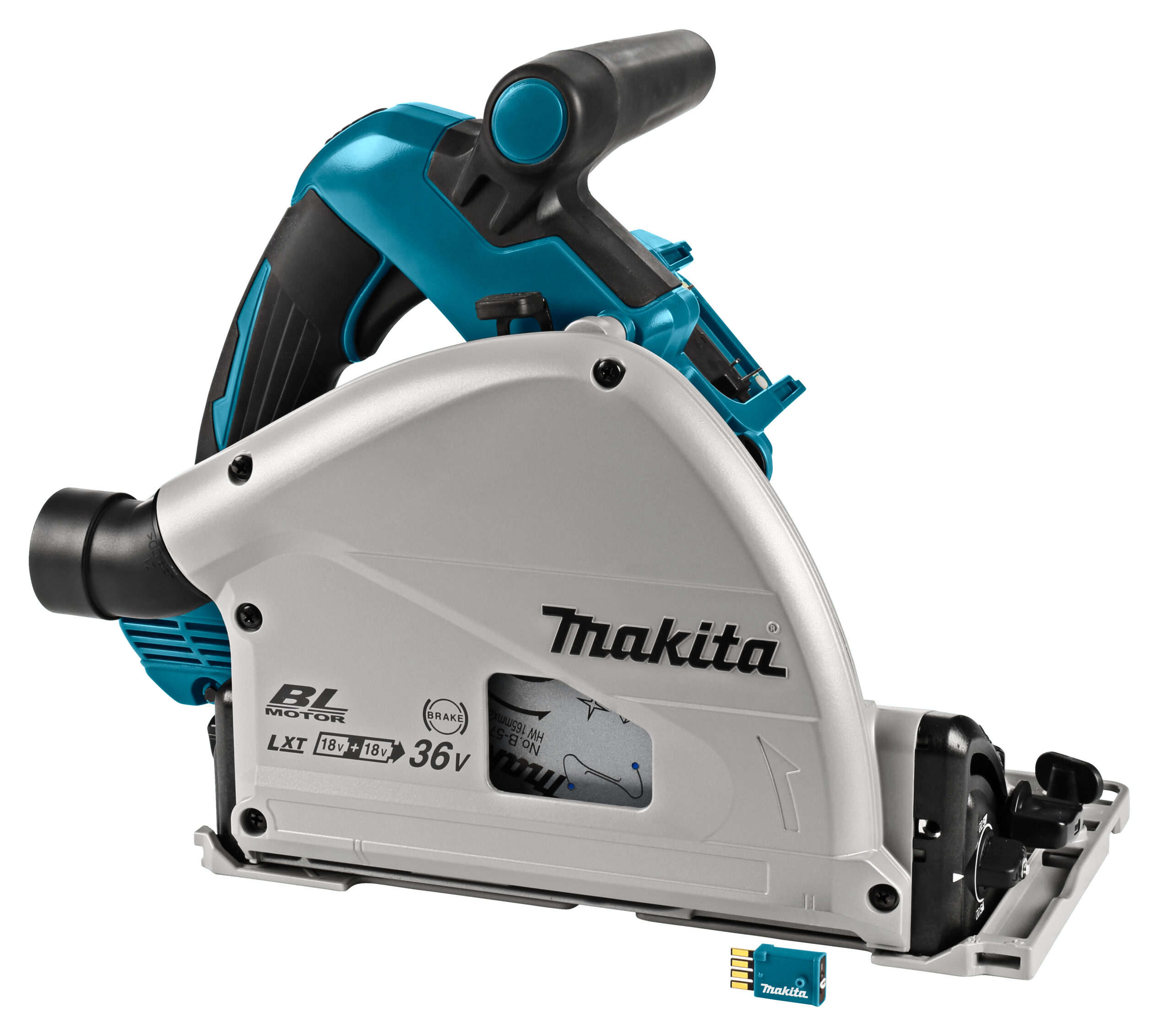

Plunge Cut Saw LXT
DSP601ZU
36V (18Vx2) LXT • 2 500 – 6 300 min⁻¹ • 165 mm
Accurate brushless plunge cut circular saw with AWS remote start for dust extraction for professionals
A precise plunge cut circular saw with a brushless motor. Two 18V LXT batteries give a voltage of 18V+18V. This fast saw has an adjustable speed of between 2 500 and 6 300 min-1. Extremely neat cutting with a guide rail. Remote start for dust extraction. Tool only, battery and charger not included.
• Battery protection system automatically shuts off power when the battery level is low
• The rubber coating on the handle ensures a firm working grip
• Motorbrake
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
| Plastic Carrying Case | 1 |
|---|---|
| Bore Size (Arbor Diameter) | 20 mm |
| Max. Cutting Depth at 45° | 40 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Tool weight with battery (EPTA) | 4,4 - 5,1 kg |
| Brushless Motor | YES |
| Battery Voltage | 2 x 18 V |
| Sound Pressure Level | 92 dB(A) |
| Product Dimensions (L x W x H): | 346 x 241 x 272 mm |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 103 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 3,7 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/43 mm |
| Max. Cutting Depth at 48° | 38 mm |
| Tool Category | Sawing |
| Max. Cutting Depth at 90° | 56 mm |
| Blade Diameter | 165 mm |
| No load speed | 2500 - 6300 min⁻¹ |
| AWS FUNCTION | YES |
• With Wireless Unit and Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DSP601ZU
