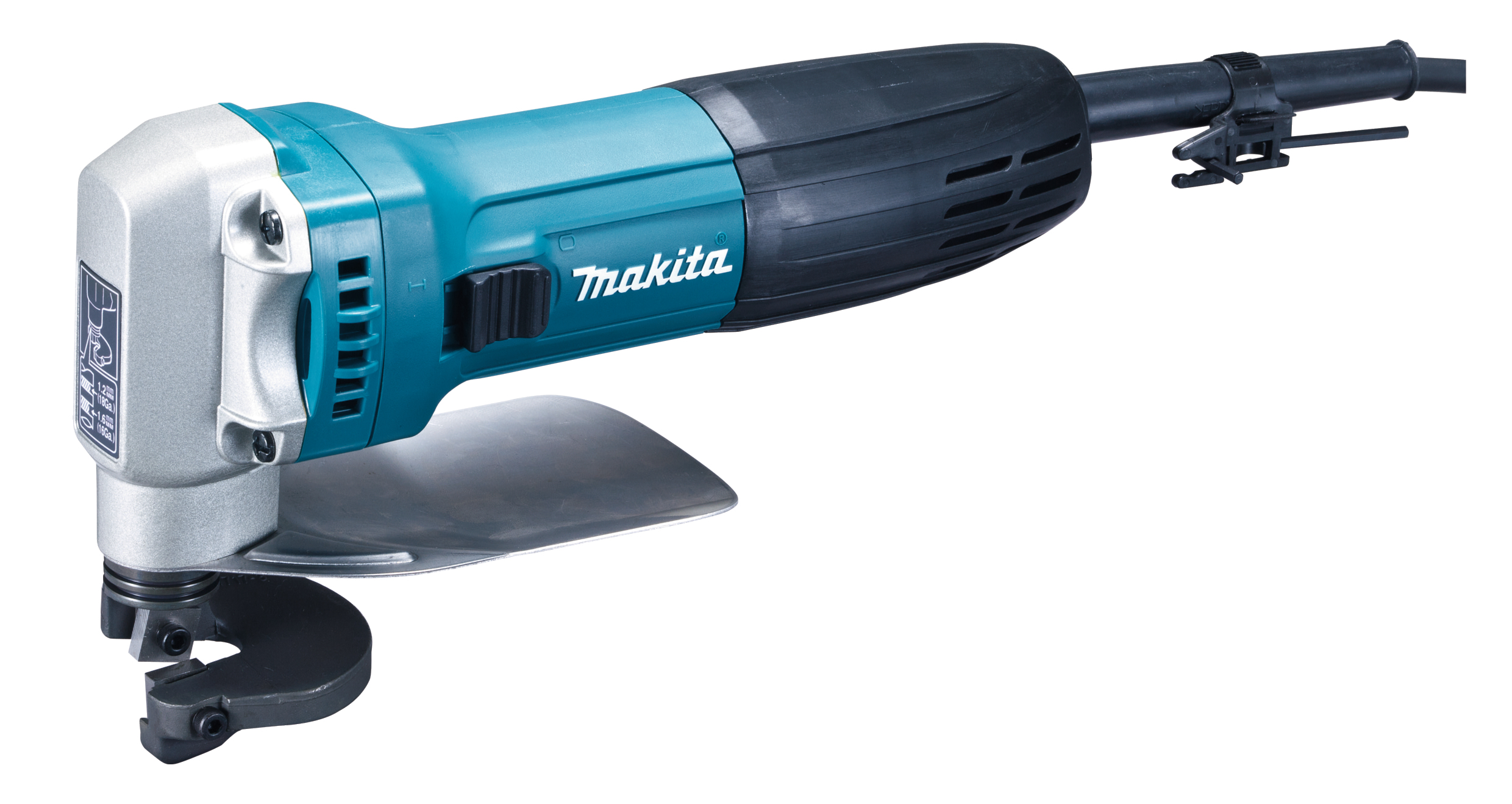

Metal Shear
JS1602
380 W • 4 000 min⁻¹
Handy, high-capacity metal shear
A metal shear for straight and curved cuts with a radius of 30 mm, cuts a clean-edged strip from the middle. A high cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 380W and a stroke rate of 4 000 min-1.
| Cutting Capacity Aluminum (up to 200N/mm²) | 2,5 mm |
|---|---|
| Cutting Capacity Mild Steel (up to 400N/mm²) | 1,6 mm |
| Cutting Capacity Stainless Steel (up to 600N/mm²) | 1,2 mm |
| Cutting Capacity Stainless Steel (up to 800N/mm²) | 0,8 mm |
| Sound Pressure Level | 79 dB(A) |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 255 x 74 x 146 mm |
| Min. Internal Cutting Radius | 30 mm |
| Strokes per Minute (SPM) | 4000 min⁻¹ |
| Continuous Input Power | 380 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 1,6 kg |
| Vibration Level (3 axes) | 7,0 m/s² |
| Weight Without Cable (EPTA) | 1,6 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Min. External Cutting Radius | 30 mm |
| Tool Category | Cutting |
