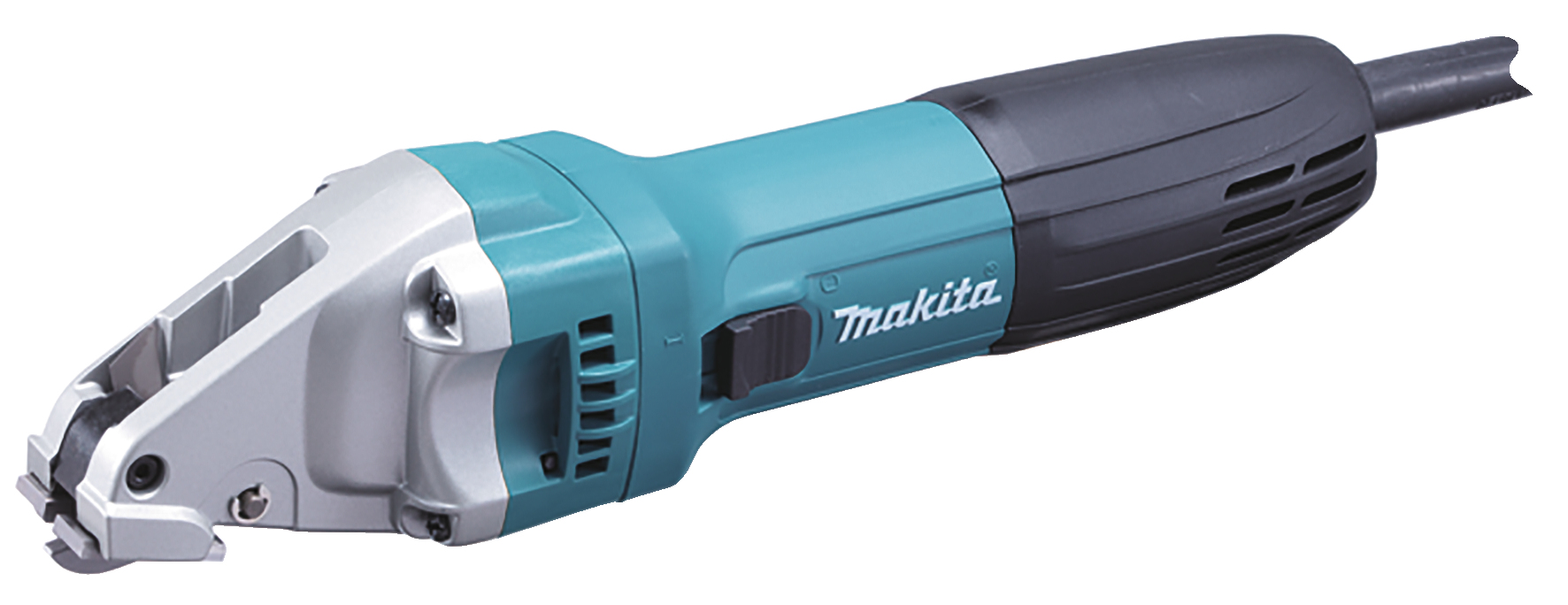

Metal Shear
JS1601
380 W • 4 500 min⁻¹
A high capacity metal shear with a radius of 250 mm
A metal shear for straight and curved cuts with a radius of 250 mm, cuts a clean-edged strip from the middle. Cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 380 W and a stroke rate of 4 500 min-1.
• Compact and lightweight design
| Cutting Capacity Aluminum (up to 200N/mm²) | 2,5 mm |
|---|---|
| Cutting Capacity Mild Steel (up to 400N/mm²) | 1,6 mm |
| Cutting Capacity Stainless Steel (up to 600N/mm²) | 1,2 mm |
| Cutting Capacity Stainless Steel (up to 800N/mm²) | 0,8 mm |
| Sound Pressure Level | 77 dB(A) |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 320 x 70 x 78 mm |
| Min. Internal Cutting Radius | 250 mm |
| Strokes per Minute (SPM) | 4500 min⁻¹ |
| Continuous Input Power | 380 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 1,4 kg |
| Vibration Level (3 axes) | 9,5 m/s² |
| Sound Power Level (LWA) | 88 dB(A) |
| Weight Without Cable (EPTA) | 1,4 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Min. External Cutting Radius | 254 mm |
| Tool Category | Cutting |
