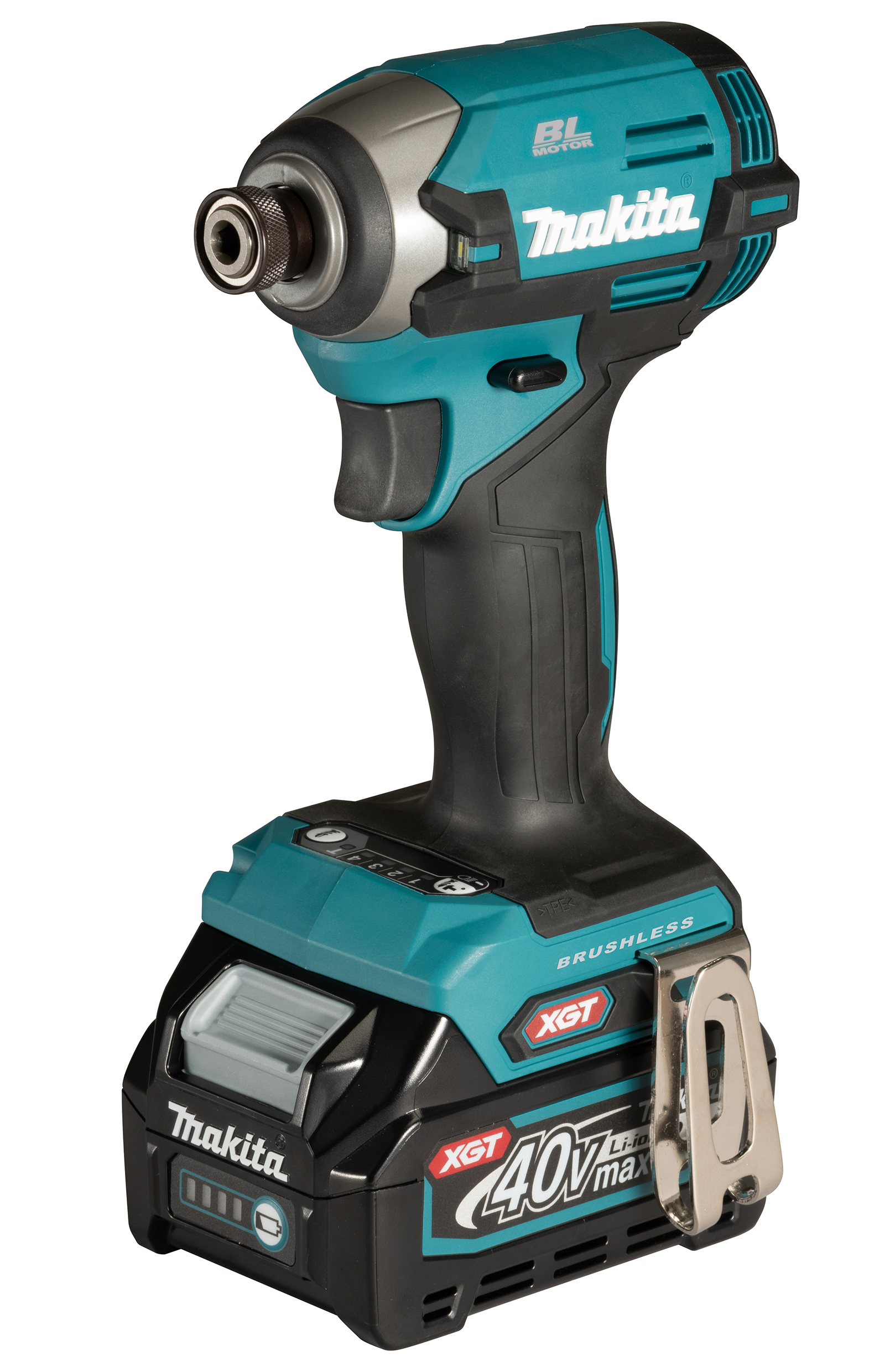

Impact Driver XGT
TD003GA201
40V MAX XGT • 1/4″ • 210 Nm • 0 – 3 700 min⁻¹
Cordless impact driver powered by 40Vmax XGT Li-Ion battery.
Powerful brushless Impact Driver with multiple operation modes. The machine has an excellent ability to perform in heavy-duty continuous tightening. The machine has 4-speed power selection and T-mode assist function for thin metals. This machine is a genuine solution for high demand industrial users. (Includes 2pcs of 2,0 Ah batteries and a fast charger in a Macpac case
• LED light illuminates the work site
• Low power consumption thanks to brushless motor
• XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
• The rubber grip on the handle ensures a good working grip
• Battery protection system automatically shuts off power when the battery level is low
| Tool weight with battery (EPTA) | 1,7 - 2,9 kg |
|---|---|
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Vibration Level (3 axes), Fastening Bolt | 11,9 m/s² |
| Sound Pressure Level | 95 dB(A) |
| Capacity machine screw | M4 - M8 |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Driving Shank | 0.25 " |
| Tightening Capacity High Tensile Bolt | M5 - M14 |
| Product Dimensions (L x W x H): | 121 x 86 x 252 mm |
| Product net weight (new) | 1,0 kg |
| Impacts per Minute (IPM) | 0 - 1400 / 2600 / 3600 / 4100 min⁻¹ |
| System | XGT 40Vmax/80V max |
| Max Fastening Torque Impact Drill | 20 / 50 / 170 / 210 Nm |
| Sound Power Level (LWA) | 106 dB(A) |
| Voltage XGT | 1 |
| Tightening Capacity Standard Bolt | M5 - M16 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool Category | Screwing and Drilling |
| No load speed | 0 - 1100 / 2100 / 3200 / 3700 min⁻¹ |
• 1pc DC40RA Fast Charger
• 2pcs x BL4020 (2.0Ah) 40V MAX XGT Battery
• Makpack Case
Find available product documentation using the Makita UAE support resources below.
Model: TD003GA201
