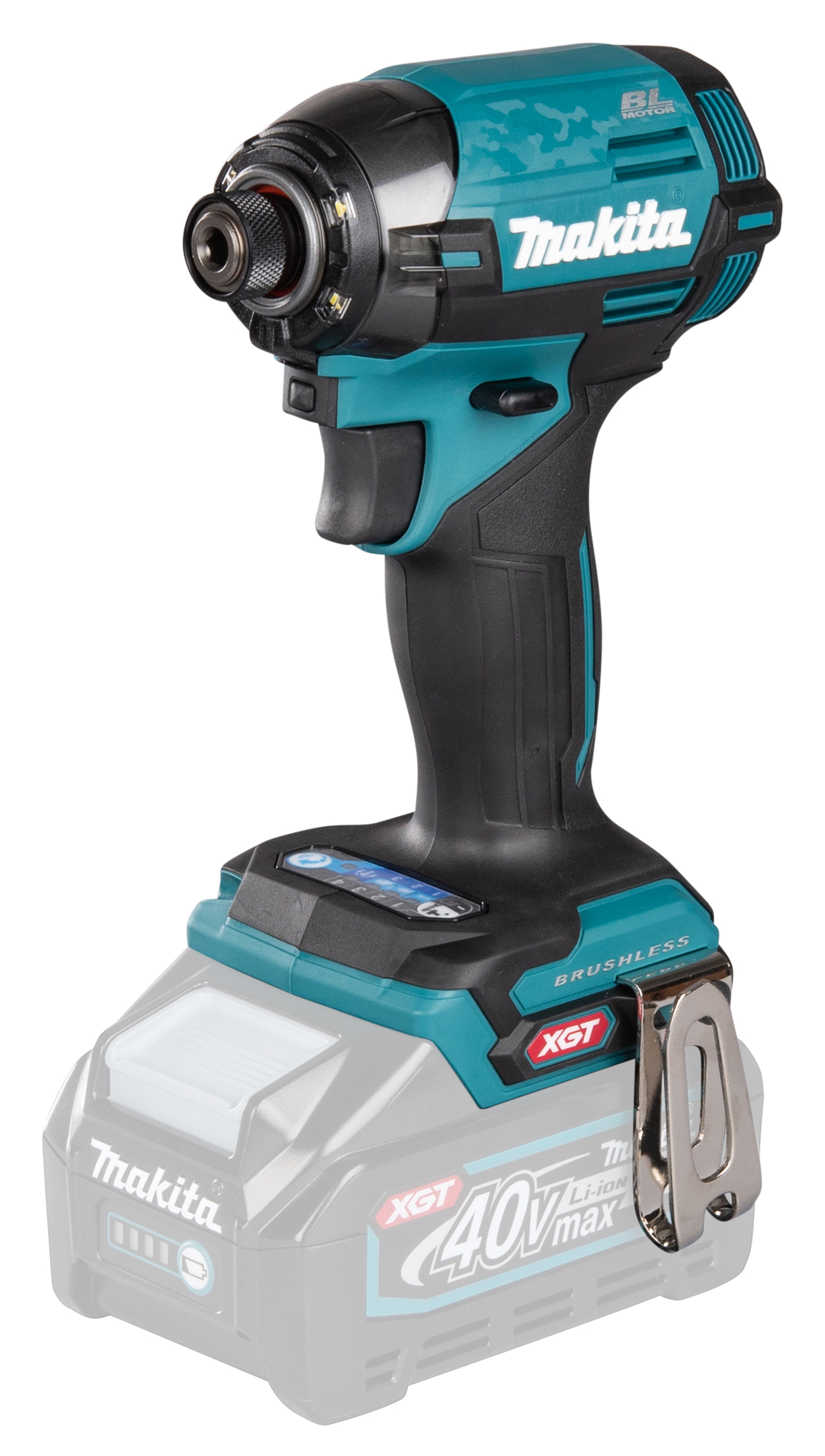

Impact Driver XGT
TD002GZ01
40V MAX XGT • 1/4″ • 220 Nm • 0 – 3 700 min⁻¹
Extremely compact impact driver.
Powerful brushless Impact Driver. The maximum torque is 220 Nm and the machine has multiple operation modes for a wide range of applications; 4-speed power selection and 6 Assist modes.
• Ergonomically designed handle with soft grip provides increased comfort on the job
• Electric brake for maximum productivity and increased operator safety
• eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Battery protection circuit protects against overloading, over-discharging and over-heating
| Tool weight with battery (EPTA) | 1,7 - 2,9 kg |
|---|---|
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Vibration Level (3 axes), Fastening Bolt | 12,9 m/s² |
| Sound Pressure Level | 94 dB(A) |
| Capacity machine screw | M4 - M8 |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Driving Shank | 0.25 " |
| Tightening Capacity High Tensile Bolt | M5 - M14 |
| Product Dimensions (L x W x H): | 119 x 86 x 252 mm |
| Product net weight (new) | 1,0 kg |
| Impacts per Minute (IPM) | 0 - 1400 / 2600 / 3600 / 4600 min⁻¹ |
| System | XGT 40Vmax/80V max |
| Max Fastening Torque Impact Drill | 20 / 50 / 170 / 220 Nm |
| Sound Power Level (LWA) | 105 dB(A) |
| Voltage XGT | 1 |
| Tightening Capacity Standard Bolt | M5 - M16 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool Category | Screwing and Drilling |
| No load speed | 0 - 1100 / 2100 / 3200 / 3700 min⁻¹ |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: TD002GZ01
