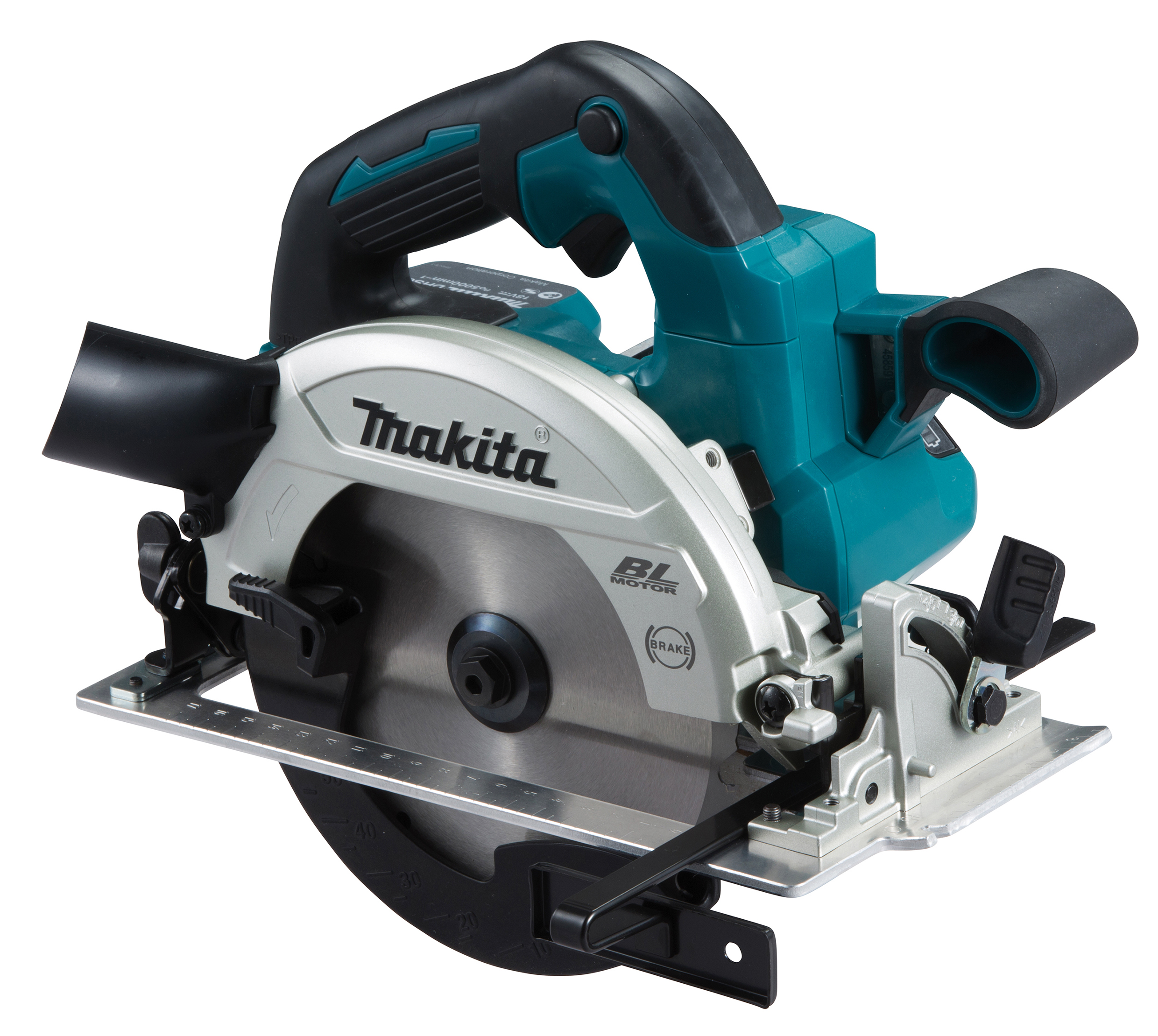

Circular Saw LXT
DHS661ZJU
18V LXT • 5 000 min-1 • 165 mm
Efficient and compact brushless professional saw with a brake and AWS fucntion
An efficient cordless circular saw with LED light and a brake and remote start for dust extraction for wood. Accepts blades with 165 mm diameter that achieve a max. cutting depth of 57 mm. Ventilation air is guided to keep the cut line clear. Can be used with a guide rule. Tool only, battery and charger not included. Comes in a MakPac case.
• Brushless maintenance-free and long-life motor
• LED light illuminates the work site
• Battery protection system automatically shuts off power when the battery level is low
• The safety switch prevents accidental start-up of the tool
• Removable dust extraction connection
• The rubber coating on the handle ensures a firm working grip
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
| Bore Size (Arbor Diameter) | 20 mm |
|---|---|
| Max. Cutting Depth at 45° | 41 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 41 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Tool weight with battery (EPTA) | 2,9 - 3,2 kg |
| Brushless Motor | YES |
| Battery Voltage | 18 V |
| Max. Cutting Depth at 50° | 37 mm |
| Max. Bevel Range (Left) | 0 / 50 º |
| Sound Pressure Level | 93 dB(A) |
| Product Dimensions (L x W x H): | 270 x 186 x 250 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 104 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 2,5 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Tool Category | Sawing |
| Blade Diameter | 165 mm |
| Max. Cutting Depth at 90° | 57 mm |
| Max Output Power | 680 W |
| No load speed | 5000 min⁻¹ |
| AWS FUNCTION | YES |
• With Wireless Unit
• Makpac Case and Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DHS661ZJU
