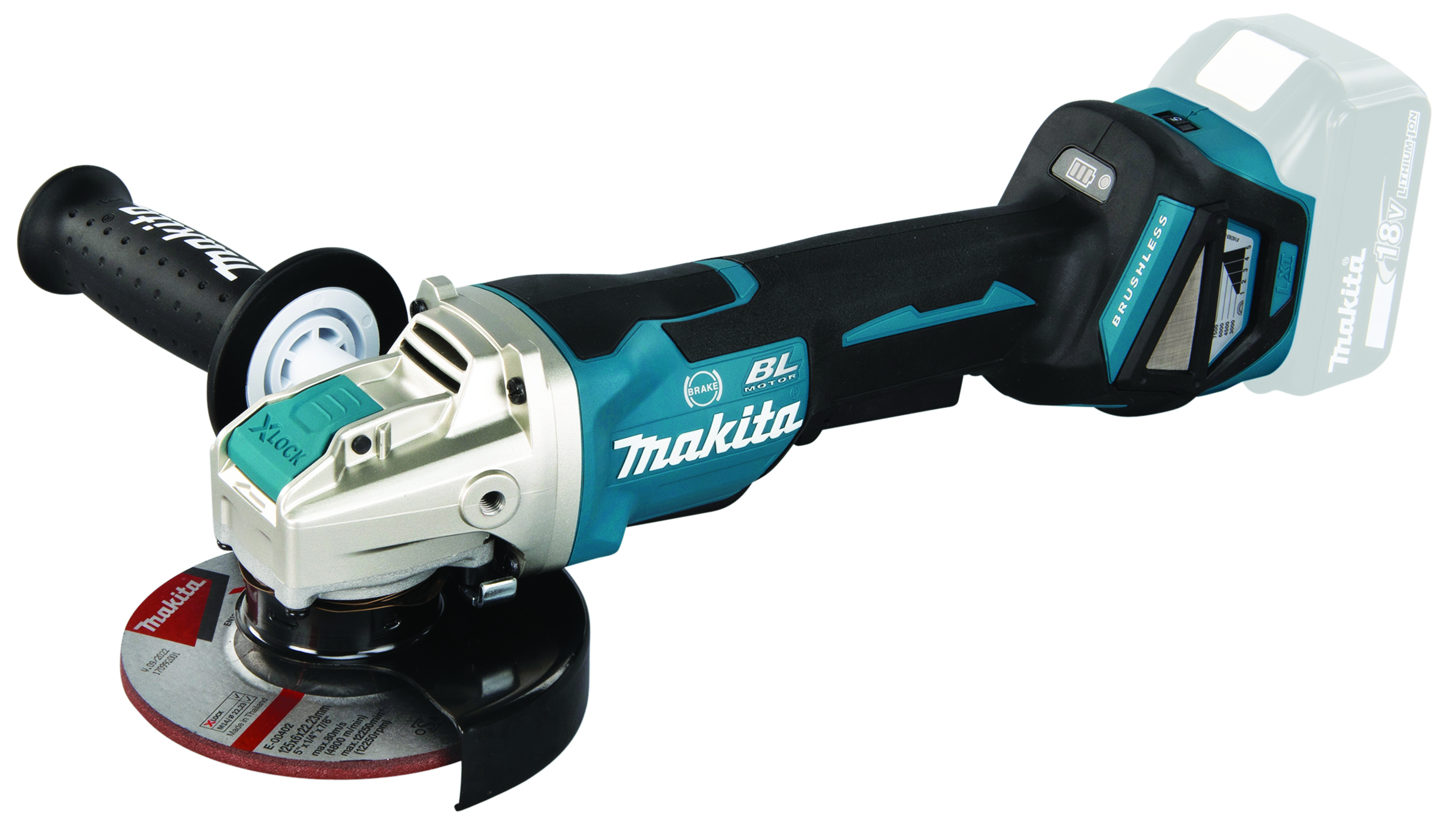

Angle Grinder LXT
DGA519Z
18V LXT • 125 mm • 3 000 – 8 500 min⁻¹
The X-LOCK mechanism allows the installation / removal of X-LOCK discs without the need for a tool.
With X-Lock, one click is all you need. Insert the wheel into the X-Lock bracket and press it into place. To replace the wheel, simply pull the lever and remove wheel . The X-Lock allows you to change wheels quickly and easily – without the need for a key and even when wearing gloves. Tool only, battery and charger not included.
• Brushless maintenance-free and long-life motor
• disc brake
• Paddle switch
• Battery protection circuit protects against overloading, over-discharging and over-heating
| Bore Size (Arbor Diameter) | 22,23 mm |
|---|---|
| Max. Depth of Cut | 29 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Grinding Disc Diameter | 125 mm |
| Vibration Level, Surface Grinding | 7,0 m/s² |
| Tool weight with battery (EPTA) | 2,5 - 3,1 kg |
| Brushless Motor | YES |
| Battery Voltage | 18 V |
| Vibration Uncertainty (K Factor), Disc Sanding | 1,5 m/s² |
| Sound Pressure Level | 83 dB(A) |
| Vibration Level, Disc Sanding | ≤ 2,5 m/s² |
| Product Dimensions (L x W x H): | 396 x 140 x 147 mm |
| Sound Power Level (LWA) | 91 dB(A) |
| Voltage LXT | 1 |
| Product net weight (new) | 1,8 kg |
| System | LXT 18V/36V |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool Category | Grinding, Sanding and Polishing |
| Electronic brake | 1 |
| Dead Man's Switch (No Lock-On) | 1 |
| Max Output Power | 660 W |
| Vibration Uncertainty (K Factor), Surface Grinding | 1,5 m/s² |
| Anti-Restart Function (NVR Switch) | 1 |
| No load speed | 3000 - 8500 min⁻¹ |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DGA519Z
