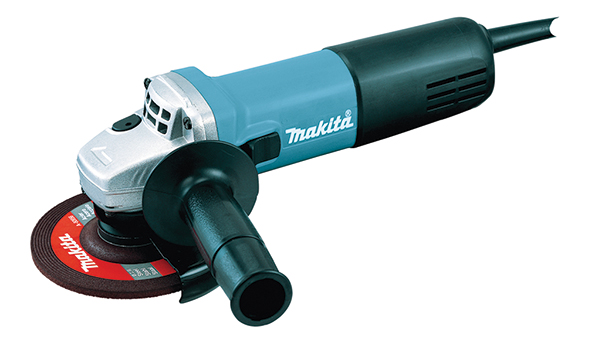

Angle Grinder
9558HNG
840 W • 125 mm • 11 000 min⁻¹
Compact tool for cutting and grinding
A small angle grinder with 840 W motor and 125 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a slide switch.
• Reliable machined gears provide twice or more longer service life
• Compact design with small diameter barrel and lightweight for added comfort
• Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
• Slide switch with lock-on for continuous use
• Push button spindle lock for operator convenience
• Double insulated
| Bore Size (Arbor Diameter) | 22,23 mm |
|---|---|
| Vibration Level, Surface Grinding | 8,5 m/s² |
| Grinding Disc Diameter | 125 mm |
| Power Supply Cord | 2,5 m |
| Vibration Uncertainty (K Factor), Disc Sanding | 1,5 m/s² |
| Product Dimensions (L x W x H): | 271 x 139 x106 mm |
| Max Output Power | 1000 W |
| Vibration Uncertainty (K Factor), Surface Grinding | 1,5 m/s² |
| Sound Pressure Level | 89 dB(A) |
| Vibration Level, Disc Sanding | ≤ 2,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Weight Without Cable (EPTA) | 1,7 - 3,2 kg |
| Continuous Input Power | 840 W |
| Tool Category | Grinding, Sanding and Polishing |
| No load speed | 11000 min⁻¹ |
| Spindle Thread | M14 |
| Sound Power Level (LWA) | 97 dB(A) |
