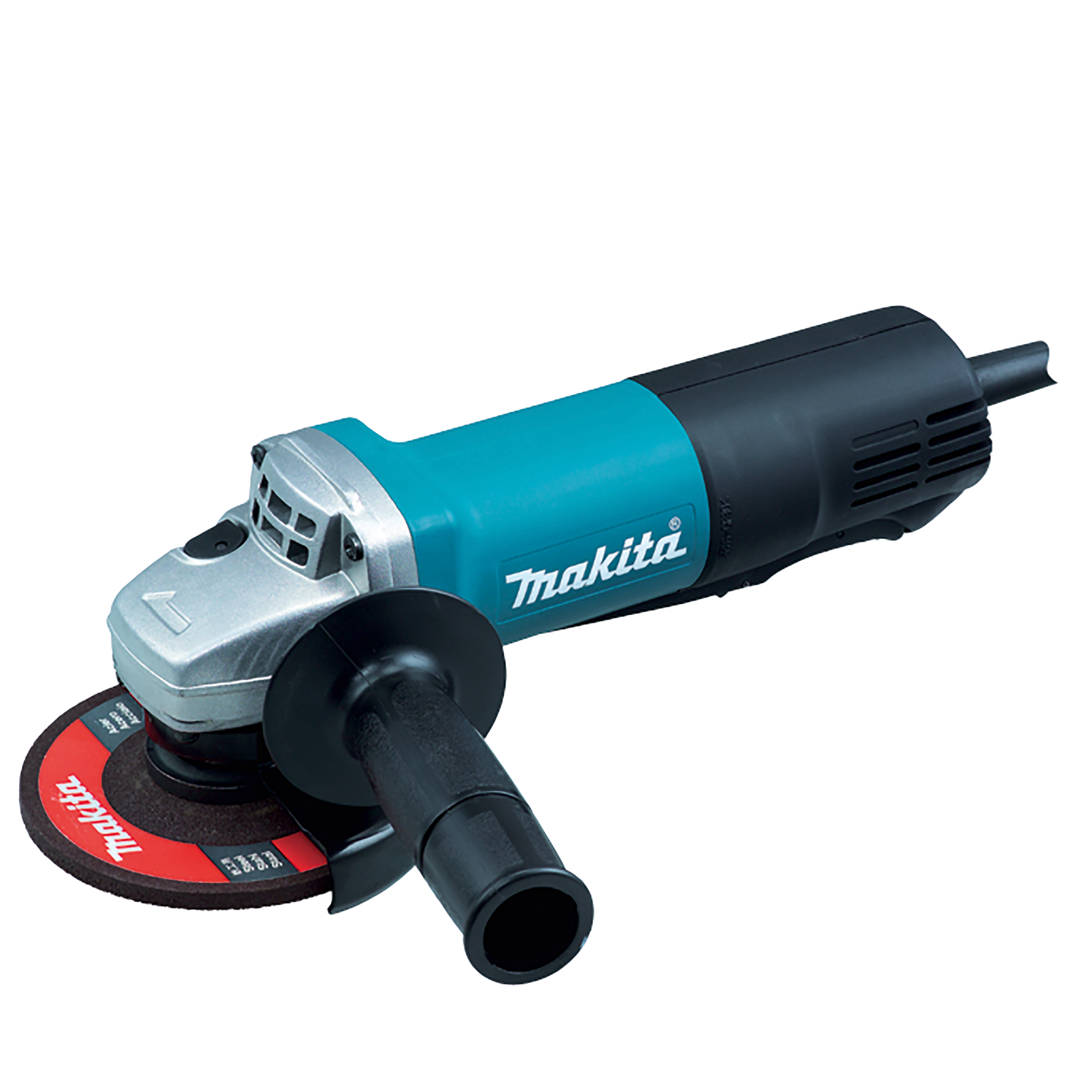

Angle Grinder
9557HPG
840 W • 115 mm • 11 000 min⁻¹
Compact tool for cutting and grinding
A small angle grinder with 840 W motor and 115 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a paddle switch.
• Reliable machined gears provide twice or more longer service life
• Compact design with small diameter barrel and lightweight for added comfort
• Compact design with small diameter barrel and lightweight for added comfort
• Protective zig-zag varnish seals the armature from dust and debris for longer tool life
• Spiral bevel gears for smoother rotations, quieter gear noise and a more efficient transfer of energy
• Large paddle switch for easy operation right or left handed
• Side grip can be positioned on both sides for operator convenience
• Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
• Push button spindle lock for operator convenience
• Can be connected to dust extraction system with optional dust collecting wheel guard
• Compact and lightweight design
| Bore Size (Arbor Diameter) | 22,23 mm |
|---|---|
| Vibration Level, Surface Grinding | 7,0 m/s² |
| Grinding Disc Diameter | 115 mm |
| Power Supply Cord | 2,5 m |
| Vibration Uncertainty (K Factor), Disc Sanding | 1,5 m/s² |
| Product Dimensions (L x W x H): | 273 x 129 x 106 mm |
| Max Output Power | 1000 W |
| Vibration Uncertainty (K Factor), Surface Grinding | 1,5 m/s² |
| Sound Pressure Level | 88 dB(A) |
| Vibration Level, Disc Sanding | ≤ 2,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Weight Without Cable (EPTA) | 1,7 - 2,2 kg |
| Continuous Input Power | 840 W |
| Tool Category | Grinding, Sanding and Polishing |
| No load speed | 11000 min⁻¹ |
| Spindle Thread | M14 |
| Sound Power Level (LWA) | 96 dB(A) |
Find available product documentation using the Makita UAE support resources below.
Model: 9557HPG
