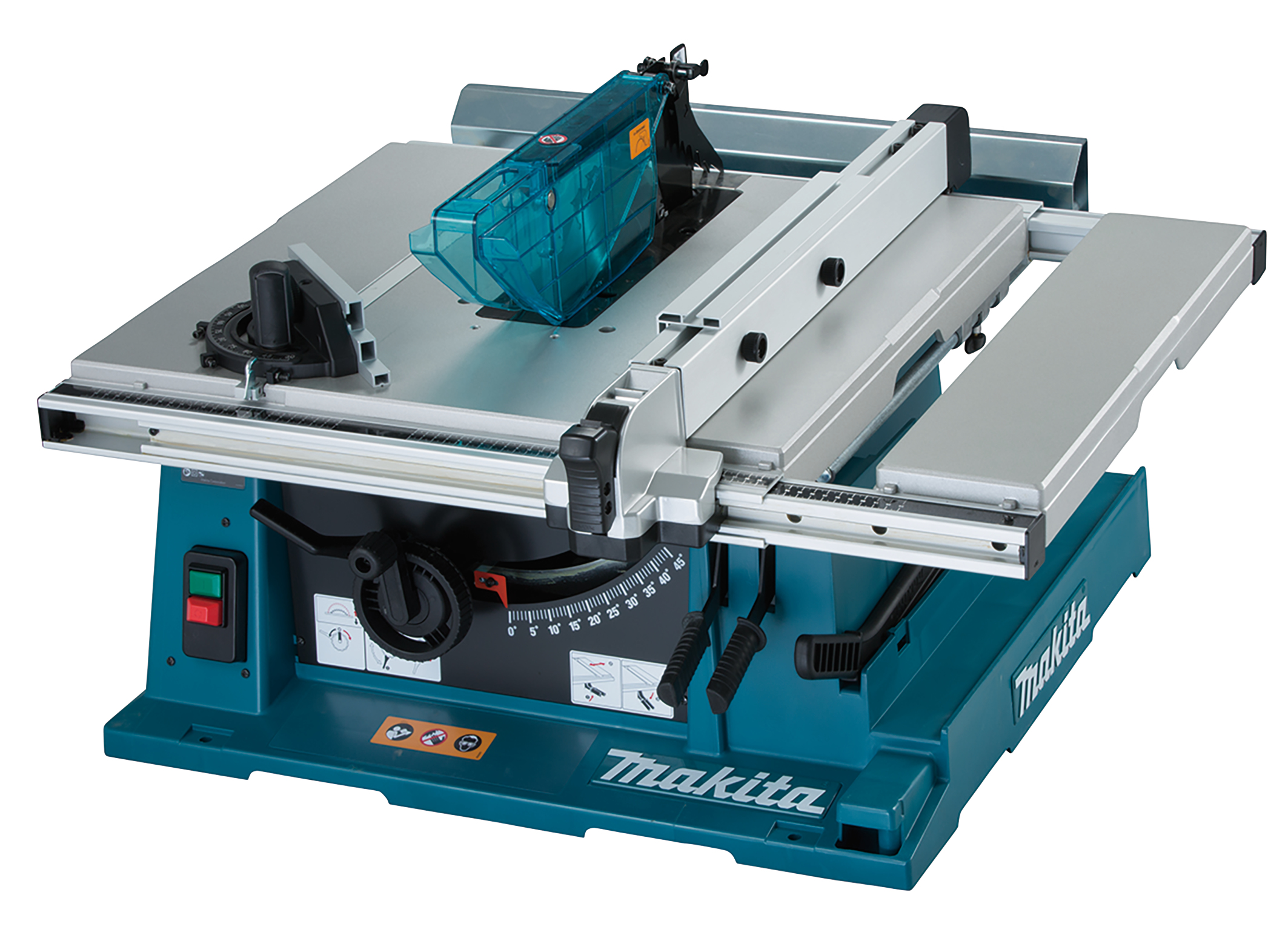

Table Saw
2704N
1 650 W • 260 mm
Efficient, high-accuracy table saw
An accurate table saw with a 1 650 W motor and speed of 4 800 min-1 for professional use. A solid guide at the back and front. Max. sawing depth of 93 mm at a 90° angle and 64 mm at a 45° angle. Max. cutting width of 65 cm with the control.
| Max. Cutting Height (above Table) at 90° | 93 mm |
|---|---|
| Table size | 625 x 567 mm |
| Bore Size (Arbor Diameter) | 30,0 mm |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 715 x 753 x 483 mm |
| No load speed | 5200 min⁻¹ |
| Sound Pressure Level | 94 dB(A) |
| Max. Bevel Range (Left) | -0,5 - 50 º |
| Continuous Input Power | 1650 W |
| Vacuum cleaner connection Ø in / out | 45/52 mm |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Weight Without Cable (EPTA) | 35,2 - 37 kg |
| Blade Diameter | 260 mm |
| Max. Cutting Height (above Table) at 45° | 64 mm |
| Tool Category | Sawing |
| Max distance from blade to edge | 624 mm |
| Product net weight (new) | 35,2 kg |
| Sound Power Level (LWA) | 107 dB(A) |
Find available product documentation using the Makita UAE support resources below.
Model: 2704N
