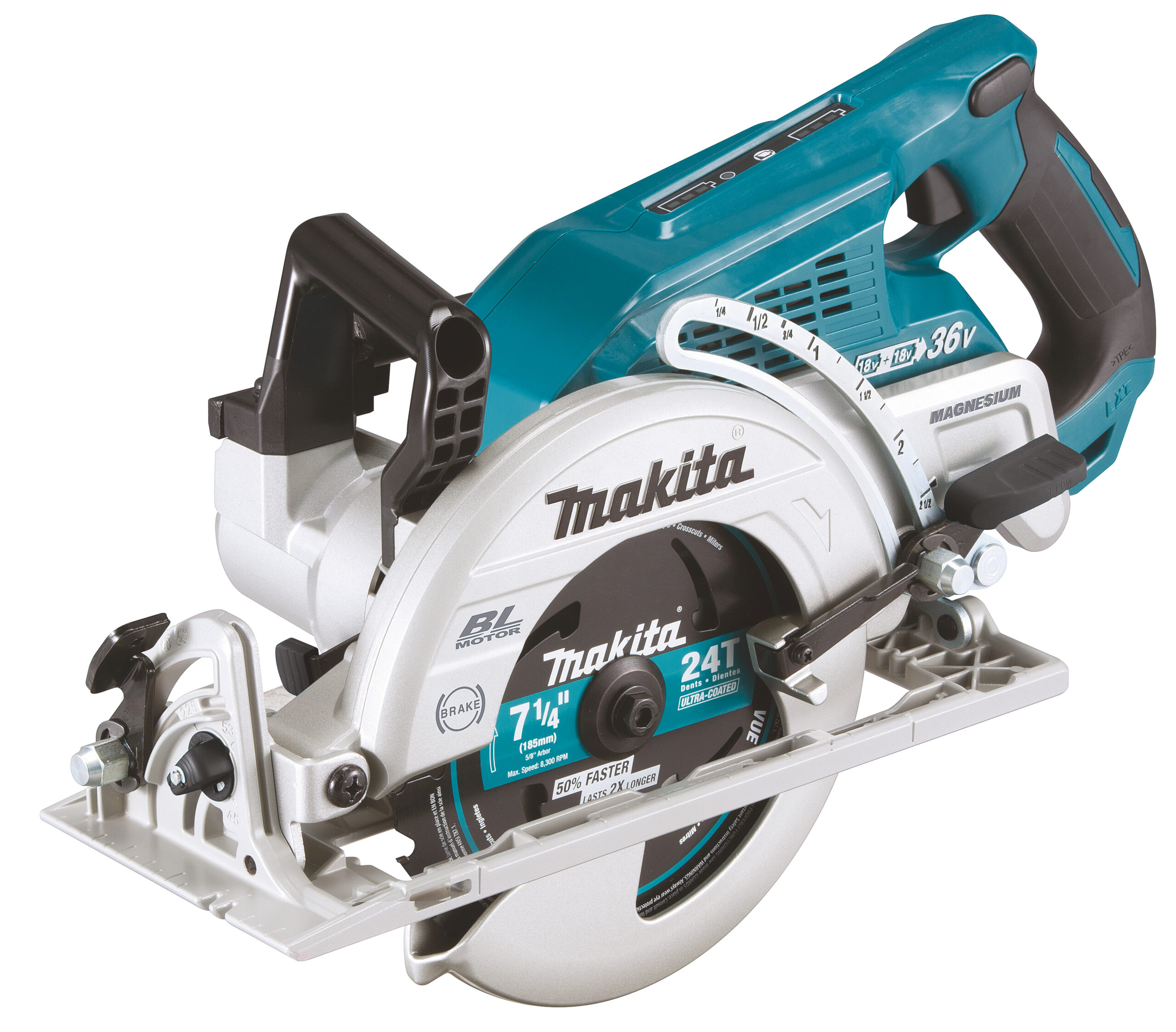

Rear Handle Circular Saw LXT
DRS780Z
36V (18Vx2) LXT • 5 100 min⁻¹ • 185 mm
Robust brushless professional saw with remote start for vacuum
A robust brushless saw with remote start for dust extraction, designed for cutting wood. Two LXT 18V batteries offer an output of 18V+18V. Accepts blades with 185 mm diameter that achieve a max. cutting depth of 65 mm. Tool only, battery and charger not included. Tool only, battery and charger not included.
• The safety switch prevents accidental start-up of the tool
• Battery protection system automatically shuts off power when the battery level is low
• The rubber coating on the handle ensures a firm working grip
• Body model - delivered without battery and charger.
| Bore Size (Arbor Diameter) | 20 / 30 mm |
|---|---|
| Max. Cutting Depth at 45° | 45 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 45 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Tool weight with battery (EPTA) | 5,0 - 5,6 kg |
| Brushless Motor | YES |
| Battery Voltage | 2 x 18 V |
| Max. Bevel Range (Left) | 0 / 53 º |
| Sound Pressure Level | 92 dB(A) |
| Product Dimensions (L x W x H): | 446 x 196 x 270 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 103 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 4,3 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool Category | Sawing |
| Blade Diameter | 185 mm |
| Max. Cutting Depth at 90° | 65 mm |
| Max Output Power | 1700 W |
| No load speed | 5100 min⁻¹ |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: DRS780Z
