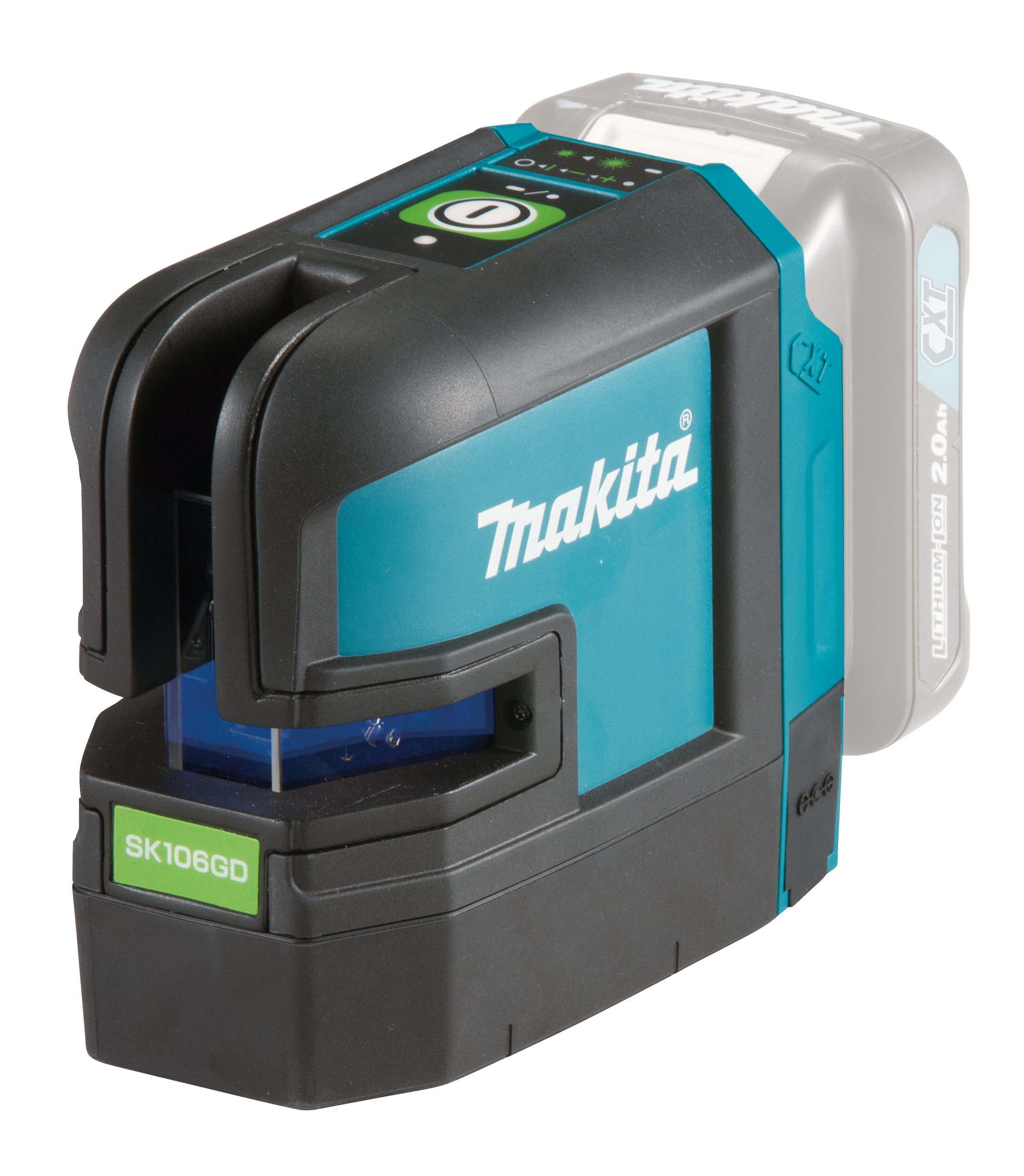

Point and Cross Line Laser CXT
SK106GDZ
12V MAX • 35 m
Cordless cross line/point laser with green laser
A self-levelling cross line laser with green vertical and horizontal lines that can be used separately or together. Point lasers up and down, left and right. Visibility of 35 metres. All functions are easy to operate from a single button. The laser is dust and water resistant with IP54 rating, and its run time with a 4.0Ah battery is about 20 h. Tool only, battery and charger not included.
• Four laser points: up, down, left and right.
• Battery protection system automatically shuts off power when the battery level is low
| Leveling Range | ±4 º |
|---|---|
| Tool weight with battery (EPTA) | 0,69 - 0,85 kg |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Battery Voltage | 12 V |
| Continuous use 12Vmax / 4.0 Ah battery | 20 h |
| Laser Class | 2 |
| CXT Battery | 1 |
| Average Charging Time | 70 min |
| Product Dimensions (L x W x H): | 138 x 64 x 102 mm |
| Product net weight (new) | 0,48 kg |
| System | CXT 12Vmax |
| Spindle Thread | 1/4" / 5/8" |
| Measuring range | 35 (80) m |
| Tool Category | Measuring and Leveling |
| International Protection Class (IP) | IP54 |
| Continuous use 12Vmax / 2.0 Ah battery | 10 h |
| Average Accuracy (2s) of Length Measurement | ±3mm / 10m |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: SK106GDZ
