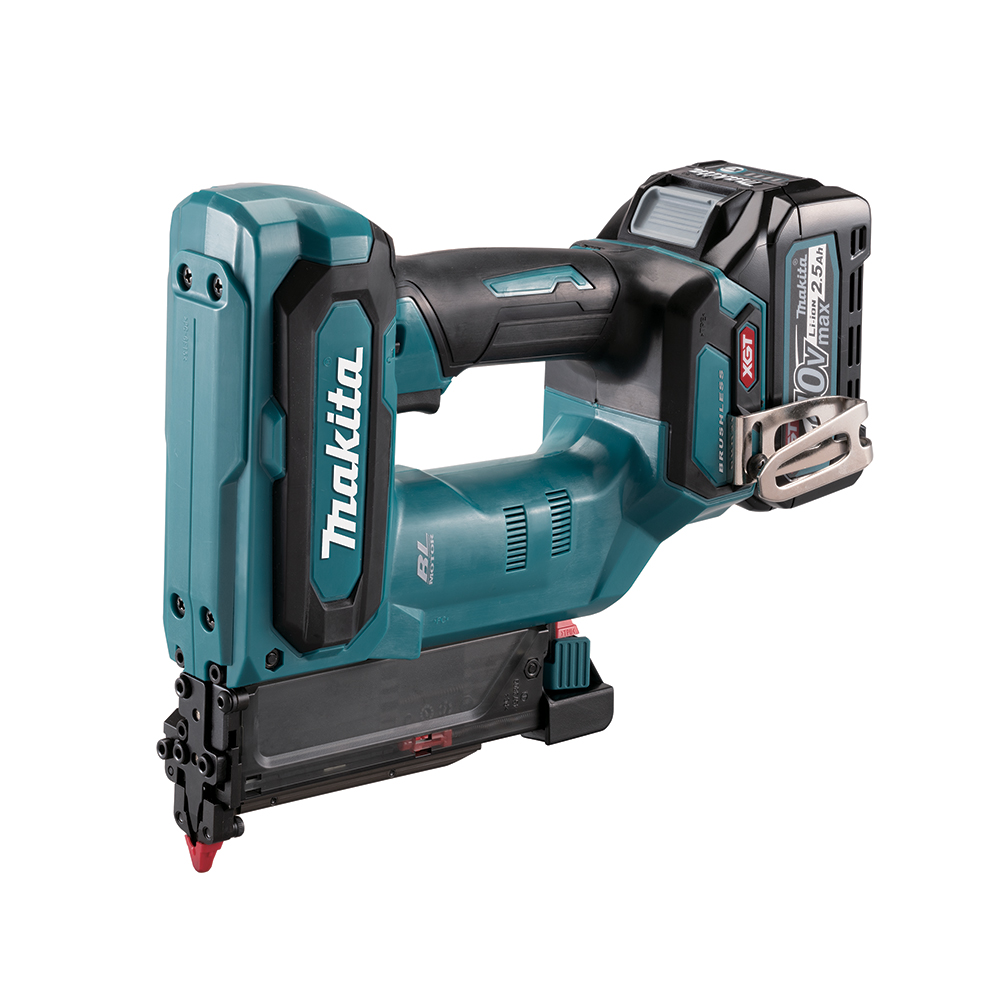

Pin Nailer XGT
PT001GA101
40V MAX XGT • 15 – 35 mm
Cordless XGT® Pin nailer for finishing work.

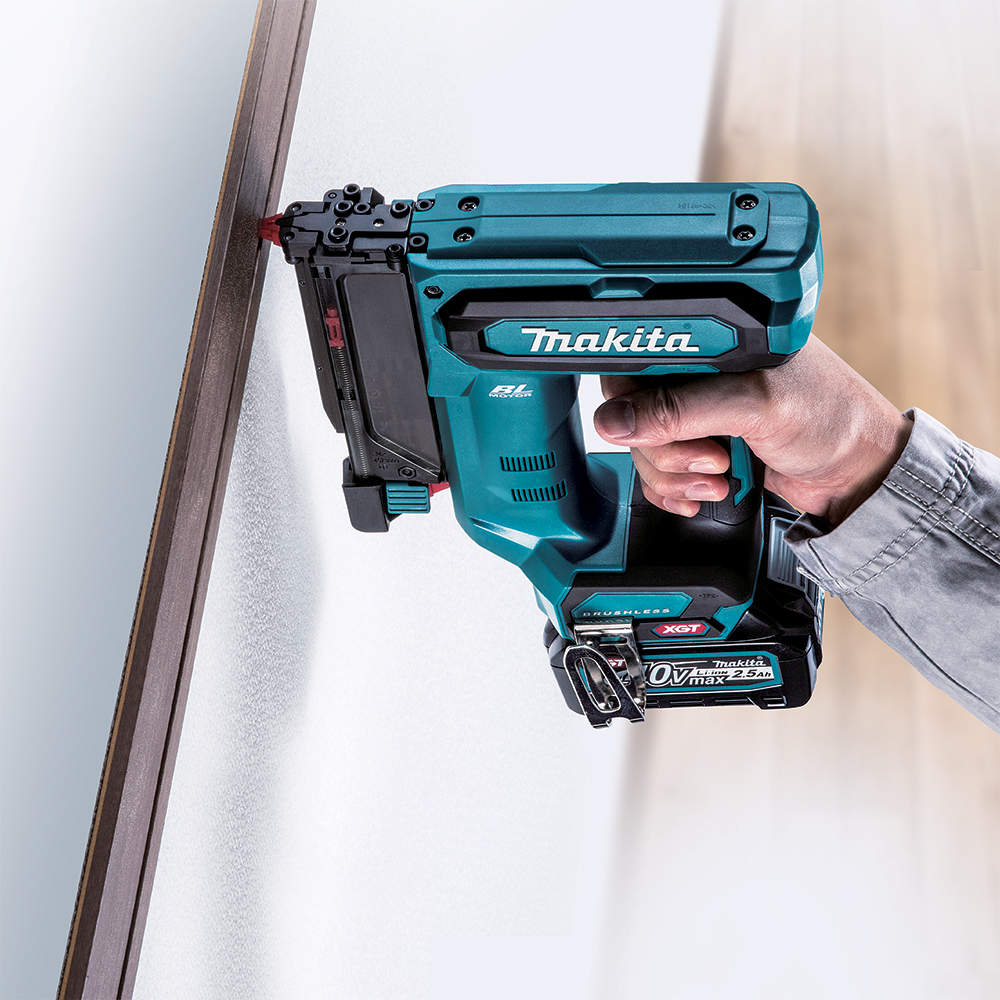

PT001G is developed mainly for interior nailing operations where a high quality finish is required, such as installation of baseboards, crown moldings and more. The use of BL motor and redesigned driving spring makes its operation nearly as equivalent to a Pneumatic Pin Nailer.
Brushless Motor of PT001G enables fire 20% faster than LXT model DPT353 model.
• Improved Driver Durability achieved by redesigning the shape of the driver tip and reducing thin places
• Low Recoil Mechanism enables easier nailing of long pins without pushing down the pin nailer firmly and also achieves high-quality finish nailing

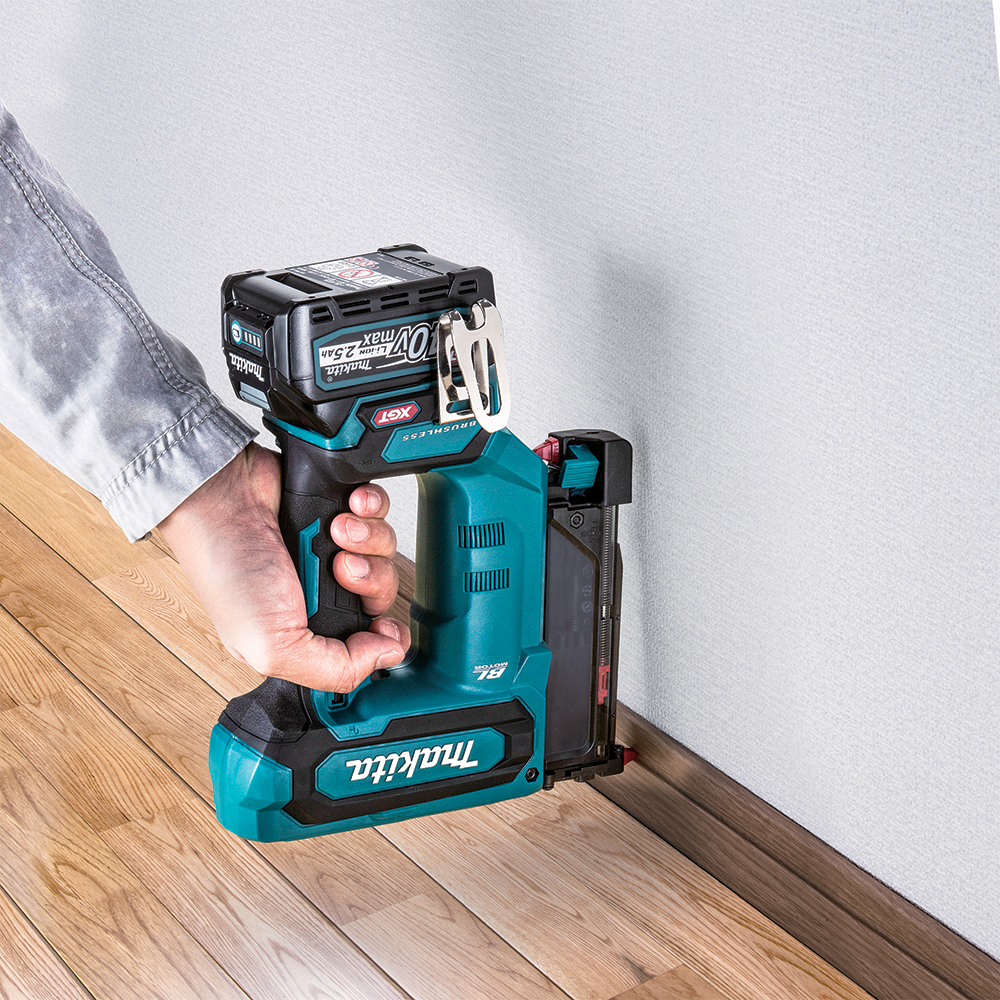

• Fires both vertically and horizontally. Nails can be fired in the groove of baseboard
• Contact Arm Mechanism enables “continuous nailing” and “drag nailing”
• Compact & Lightweight
| Tool weight with battery (EPTA) | 2,4 - 3,0 kg |
|---|---|
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Sound Pressure Level | 79 dB(A) |
| Fastener Gauge | 23 Ga |
| Depth Adjustment | 1 |
| Nail Length | 15,18,25,30,35 mm |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product Dimensions (L x W x H): | 271 x 86 x 232 mm |
| Product net weight (new) | 1,7 kg |
| System | XGT 40Vmax/80V max |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Voltage XGT | 1 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Fastener Magazine Capacity | 120 |
| Tool Category | Fastening and Fixing |
| Nail Diameter | 0.6 mm |
• 1pc DC40RA Fast Charger
• 1pc x BL4020 (2.0Ah) 40V MAX XGT Battery
• Makpack Case
