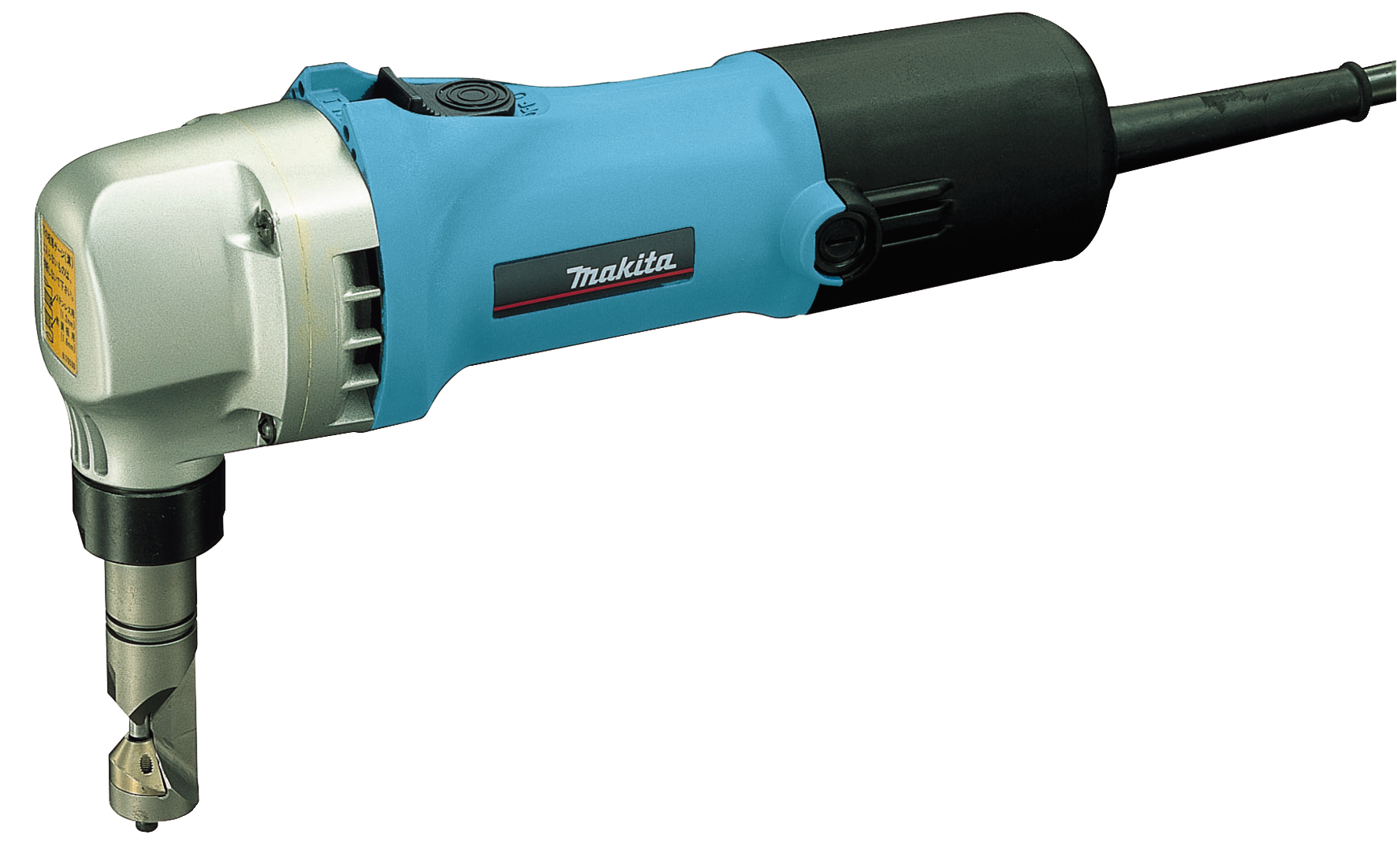

Nibbler
JN1601
550 W • 2 200 min⁻¹
Clean and precise cutting of metal and other sheets
A slimline nibbler that achieves precise, clean-edged curved and straight cuts. Ideal for cutting profile sheets, such as roofing materials. The nibbler die rotates 360 degrees. A cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 550 W and a stroke rate of 2 200 min-1.
| Cutting Capacity Aluminum (up to 200N/mm²) | 2,5 mm |
|---|---|
| Cutting Capacity Mild Steel (up to 400N/mm²) | 1,6 mm |
| Cutting Capacity Stainless Steel (up to 600N/mm²) | 1,2 mm |
| Cutting Capacity Stainless Steel (up to 800N/mm²) | 0,8 mm |
| Sound Pressure Level | 91 dB(A) |
| Power Supply Cord | 2,0 m |
| Min. Internal Cutting Radius | 45 mm |
| Strokes per Minute (SPM) | 2200 min⁻¹ |
| Product Dimensions (L x W x H): | 261 x 75 x 177 mm |
| Continuous Input Power | 550 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration Level (3 axes) | 7,0 m/s² |
| Sound Power Level (LWA) | 102 dB(A) |
| Product net weight (new) | 1,6 kg |
| Weight Without Cable (EPTA) | 1,6 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Min. External Cutting Radius | 50 mm |
| Tool Category | Cutting |
Find available product documentation using the Makita UAE support resources below.
Model: JN1601
