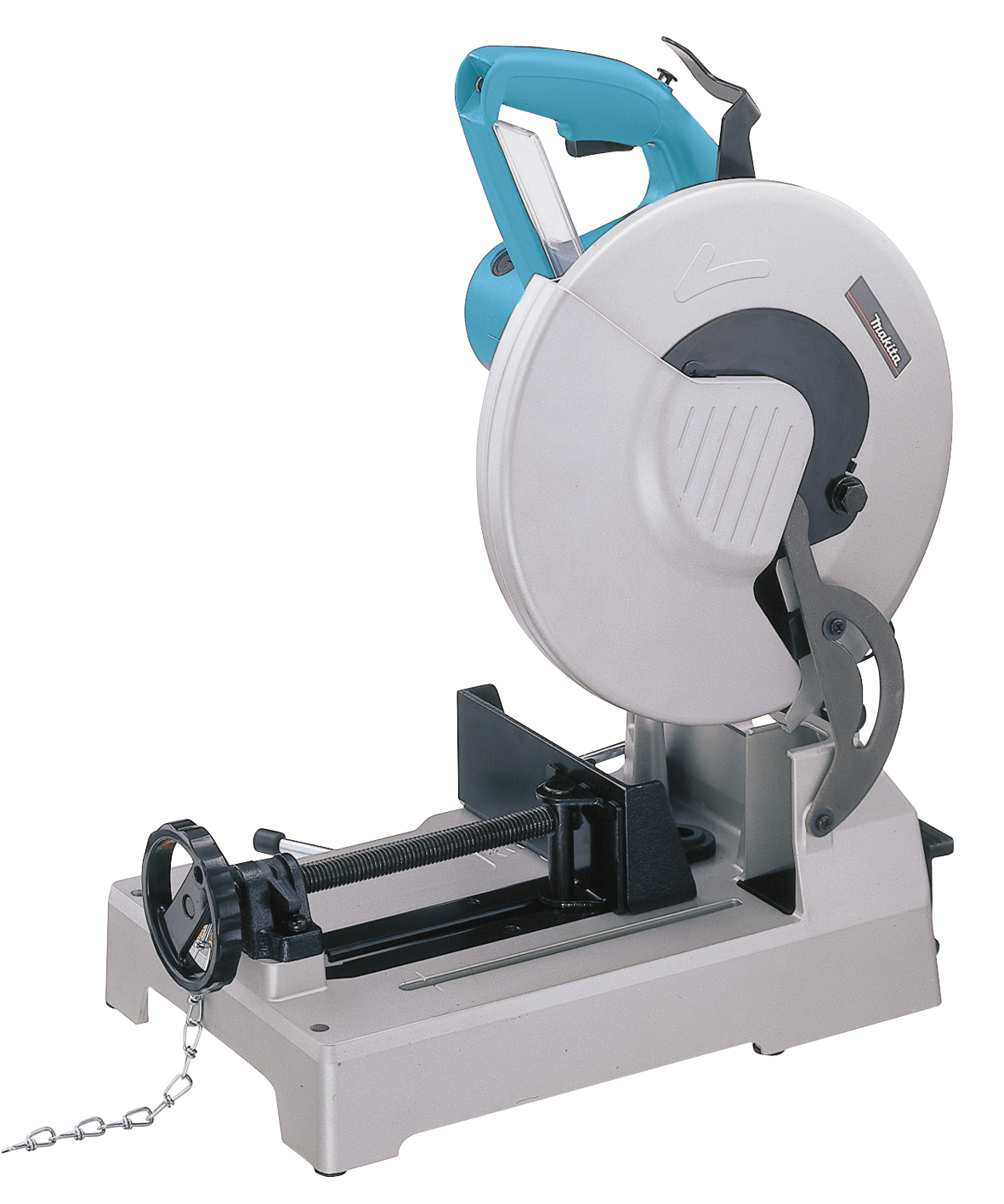

Metal Cutting Saw
LC1230N
1 750 W • 305 mm • 1 300 min⁻¹
Quick, spark-free metal cutting
Cut-off saw with powerful 1 750 W motor and 305 mm blade. For quick and almost spark-free cutting of metal. Max. pipe cutting capacity of 115 mm. Tool-less tensioning and quick release adjustment of the cutting angle.
• Mit Spindelarretierung
| Max Cutting Capacity | 75 x 150 mm |
|---|---|
| Bore Size (Arbor Diameter) | 25,4 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 85 x 85 mm |
| Capacity 90° | 75 x 150 mm |
| Grinding Disc Diameter | 305 mm |
| Sound Pressure Level | 98 dB(A) |
| Power Supply Cord | 2,5 m |
| Product Dimensions (L x W x H): | 516 x 306 x 603 mm |
| Continuous Input Power | 1750 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Product net weight (new) | 19,3 kg |
| Vibration Level (3 axes) | 4,5 m/s² |
| Sound Power Level (LWA) | 108 dB(A) |
| Weight Without Cable (EPTA) | 19 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Cutting Capacity in Steel Pipe | 115 mm |
| Tool Category | Cutting |
| No load speed | 1300 min⁻¹ |
Find available product documentation using the Makita UAE support resources below.
Model: LC1230N
