Jigsaw XGT
JV001GZ
40V MAX XGT • 800 – 3 500 minˉ¹

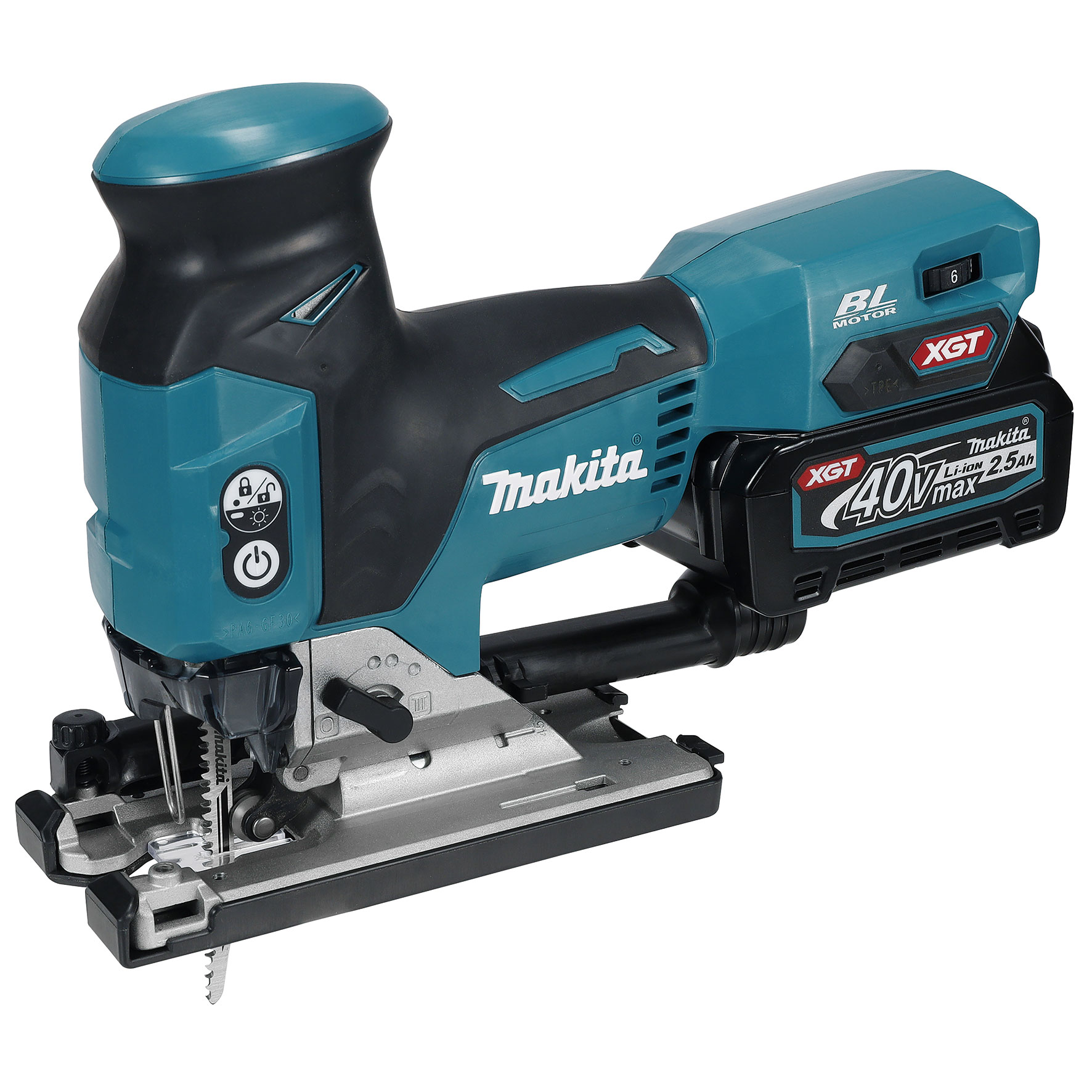

Model JV001G is a cordless jigsaw powered by 40Vmax XGT® Li-Ion battery
This model comes with high power in a compact design and more efficient than our existing AC or DC models.
XGT technology and constant speed control reduce the chance of drop in cutting speed even during heavy duty applications such as cutting 48mm thick MDF.
• Barrel handle design increased control of cutting even upside down, as your grip is closer to the workpiece
• Constant speed control allows the jigsaw to maintain consistent blade speed through every cut regardless of the material
• Featuring soft no-load that minimize strokes per minute and subsequent vibration during startup until a load is detected
• Variable speed control by dial allowing the blade speed to be matched to the material, resulting in smoother and cleaner cuts
• Improved stability during cutting due to a wider base plate
Description
| Capcity aluminium | 20 mm |
|---|---|
| Vibration Level (3 axes), Cutting Sheet Metal | 4,8 m/s² |
| Tool weight with battery (EPTA) | 2,6 - 2,9 kg |
| Orbital Action | 1 |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Max. Cutting Capacity in Wood (90°) | 135 mm |
| Sound Pressure Level | 90 dB(A) |
| Max. Bevel Range (Left) | 45 º |
| Vibration Level (3 axes), Cutting Chipboard | 4,6 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Length of Stroke | 26 mm |
| Product Dimensions (L x W x H): | 298 x 84 x 189 mm |
| Strokes per Minute (SPM) | 800 - 3500 min⁻¹ |
| Max. Bevel Range (Right) | 45 º |
| Vibration Uncertainty (K Factor) | 2,5 m/s² |
| Product net weight (new) | 1,9 kg |
| System | XGT 40Vmax/80V max |
| Sound Power Level (LWA) | 98 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max Output Power | 700 W |
| Tool Category | Sawing |
• Sold without Battery or Charger
Find available product documentation using the Makita UAE support resources below.
Model: JV001GZ
