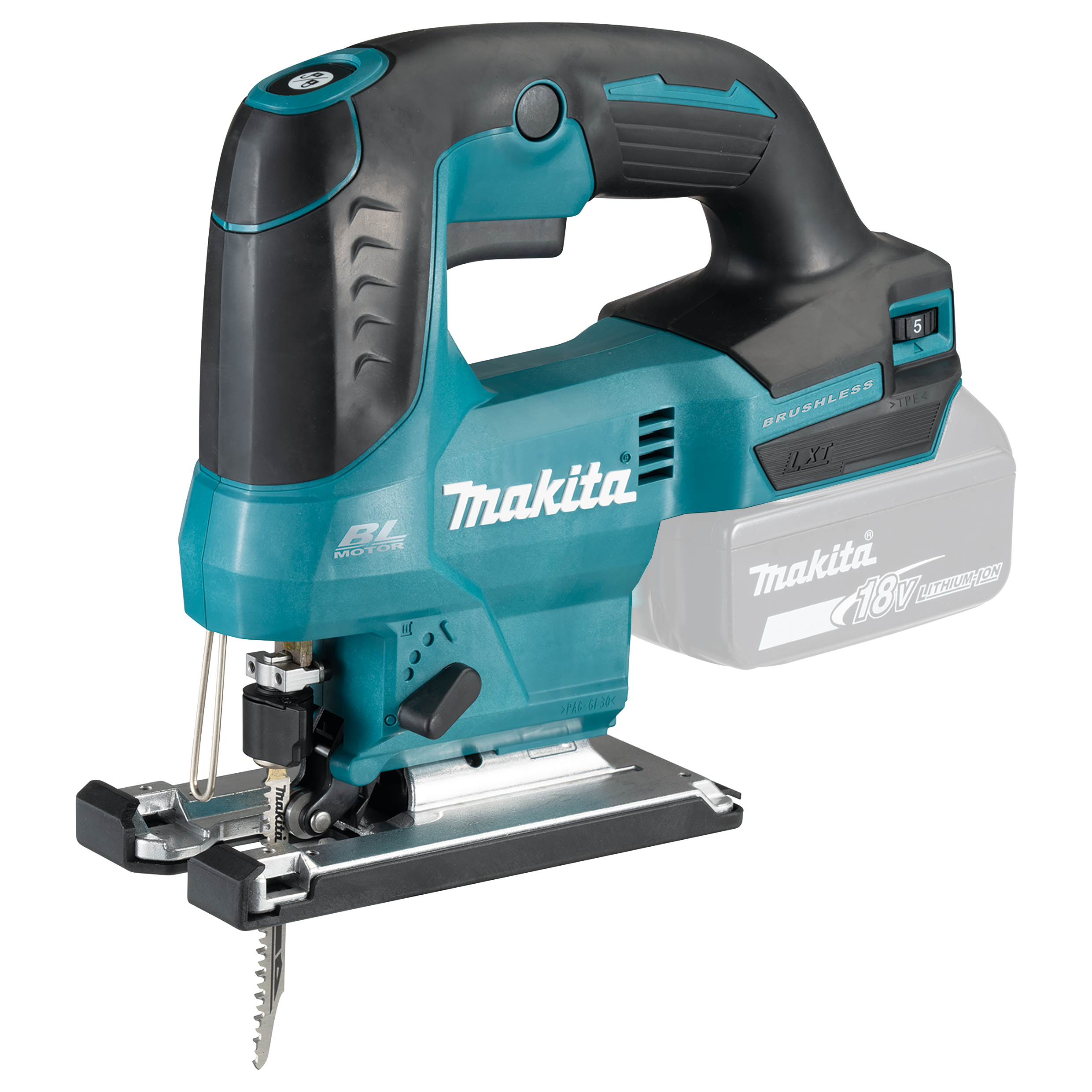

Jigsaw LXT
DJV184Z
18V LXT • 0 – 3 000 min⁻¹
Efficient brushless jigsaw with tool-less blade change
An efficient saw with 3 Orbital Settings Plus Straight Cutting and tool-less blade change. Engine speed can be adjusted between 0 and 3 000 min⁻¹ from a dial to suit the material. A stroke length of 23 mm and cutting capacity of 135 mm in wood and 10 mm in steel.
| Capcity aluminium | 20 mm |
|---|---|
| Vibration Level (3 axes), Cutting Sheet Metal | 5,1 m/s² |
| Tool weight with battery (EPTA) | 2,1 - 2,4 kg |
| Brushless Motor | YES |
| Battery Voltage | 18 V |
| Max. Cutting Capacity in Wood (90°) | 135 mm |
| Max. Bevel Range (Left) | 45 º |
| Sound Pressure Level | 82 dB(A) |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Vibration Level (3 axes), Cutting Chipboard | 7,4 m/s² |
| Length of Stroke | 23 mm |
| Product Dimensions (L x W x H): | 259 x 77 x 205 mm |
| Strokes per Minute (SPM) | 0 - 3000 min⁻¹ |
| Sound Power Level (LWA) | 93 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 1,7 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Tool Category | Sawing |
| Max Output Power | 400 W |
• Sold without Battery or Charger
