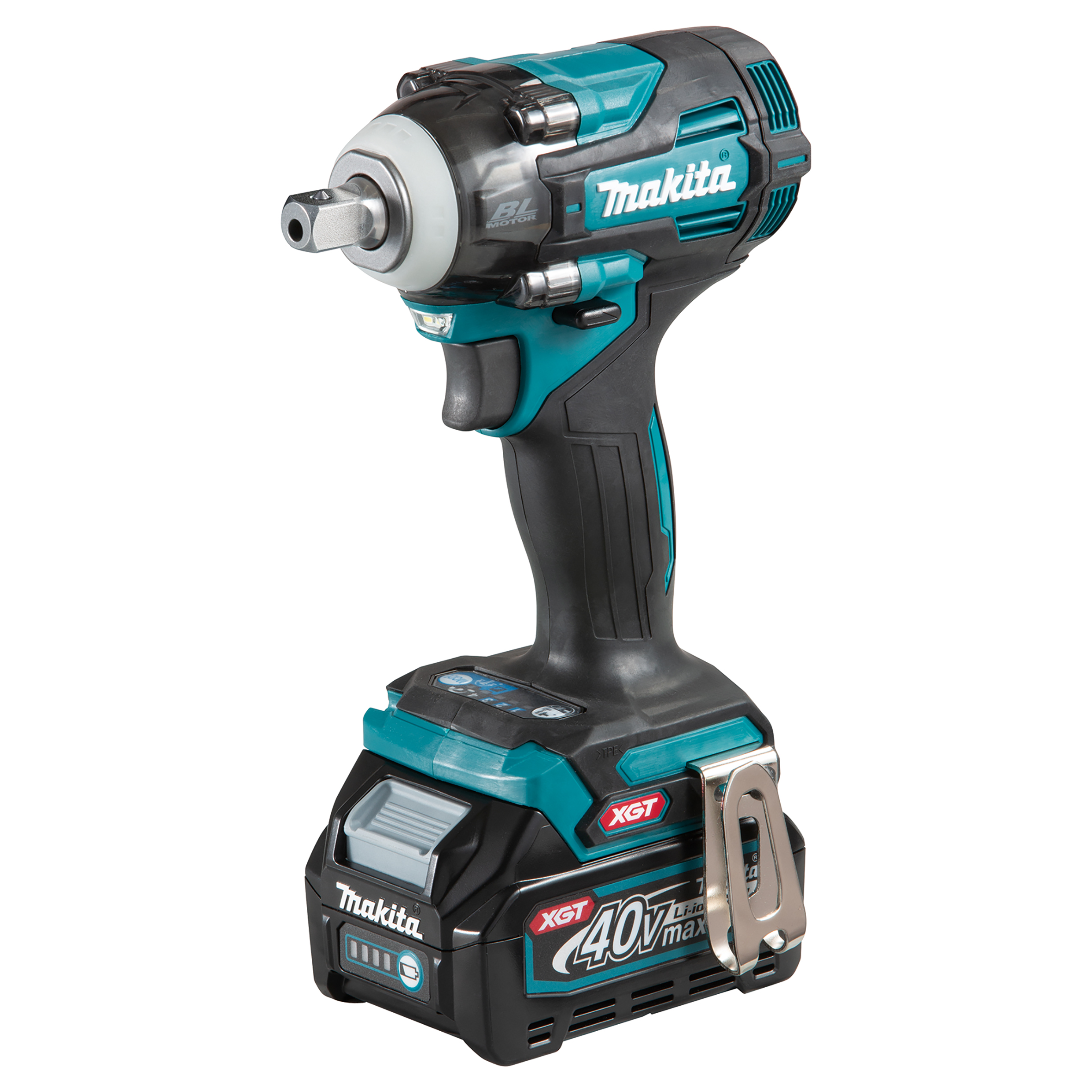

Impact Wrench XGT
TW005GM202
40V MAX XGT • 1/2″ • 350 Nm • 0 – 4000 min⁻¹
High torque, brushless impact wrench with three power settings for heavy-duty work
Powerful and extra-compact, 144 mm-long, 1/2″ drive impact wrench. Small size and light weight make this tool easy to use, while offering a max. fastening torque of 350 Nm. Four power settings. A handy LED light. Includes 2 x 4,0 Ah batteries and a charger in a Makpac case.
• Brushless maintenance-free and long-life motor
• Electronic 4 stage impact power selection for added versatility
• 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
• Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough
• Twin LED lights with preglow and afterglow functions
• XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
• Ergonomically designed handle with rubberized soft grip
• Style of socket retention: Pin detent
• Battery protection system automatically shuts off power when the battery level is low
| Drive Square | 0.25 " |
|---|---|
| Tool weight with battery (EPTA) | 1,9 - 3,1 kg |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Vibration Level (3 axes), Fastening Bolt | 16,5 m/s² |
| Sound Pressure Level | 99 dB(A) |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Tightening Capacity High Tensile Bolt | M10 - M16 |
| Product Dimensions (L x W x H): | 144 x 86 x 253 mm |
| Product net weight (new) | 1,3 kg |
| Impacts per Minute (IPM) | 0 - 1800 / 2600 / 3400 / 4000 min⁻¹ |
| System | XGT 40Vmax/80V max |
| Sound Power Level (LWA) | 110 dB(A) |
| Max Fastening Torque Impact Drill | 100 / 160 / 210 / 350 Nm |
| Voltage XGT | 1 |
| Tightening Capacity Standard Bolt | M10 - M20 |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Tool Category | Screwing and Drilling |
| Nut-busting torque | 630 Nm |
| No load speed | 0 - 1000 / 1800 / 2600 / 3200 min⁻¹ |
• 1pc DC40RA Fast Charger
• 2pcs x BL4040 (4.0Ah) 40V MAX XGT Battery
• Makpack Case
Find available product documentation using the Makita UAE support resources below.
Model: TW005GM202
