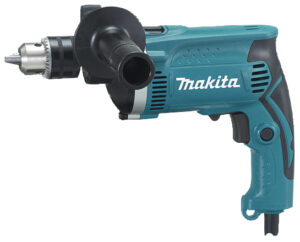

Impact Drill
HP1640KX3
680 W • 16 mm • 0 – 2 800 min⁻¹
Compact drill with hammer and drive functions
Compact 680 W percussion drill with a masonry drilling capacity of 16 mm. A slimline frame and large switch for added usability. With rugged aluminium housing for gear drive. 13 mm quick action drill chuck. 74pcs Driver Set in a case.
• Drill with drilling and impact drilling
• Rubberized soft grip for more comfort and control
• Same speed and torque in both directions with reverse gear.
• Variable speed control dial enables user to match the speed to the application
• Double insulated
| Plastic Carrying Case | 1 |
|---|---|
| Max. Drilling Diameter in Steel | 13 mm |
| Max. Drilling Diameter in Wood | 30 mm |
| Vibration Level (3 axes), Impact Drilling | 19 m/s² |
| Sound Pressure Level | 92 dB(A) |
| Power Supply Cord | 2,0 m |
| Continuous Input Power | 680 W |
| Vibration Uncertainty (K Factor) | 2,0 m/s² |
| Product Dimensions (L x W x H): | 303 x 72 x 222 mm |
| Impacts per Minute (IPM) | 0 - 44800 min⁻¹ |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 103 dB(A) |
| Weight Without Cable (EPTA) | 2,0 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Drilling Diameter in Masonry | 16 mm |
| Max. Drilling Diameter in Concrete | 16 mm |
| Drill Chuck Capacity | 1,5-13 mm |
| Tool Category | Screwing and Drilling |
| No load speed | 0 - 2800 min⁻¹ |
| Collar Clamping Diameter | 43 mm |
