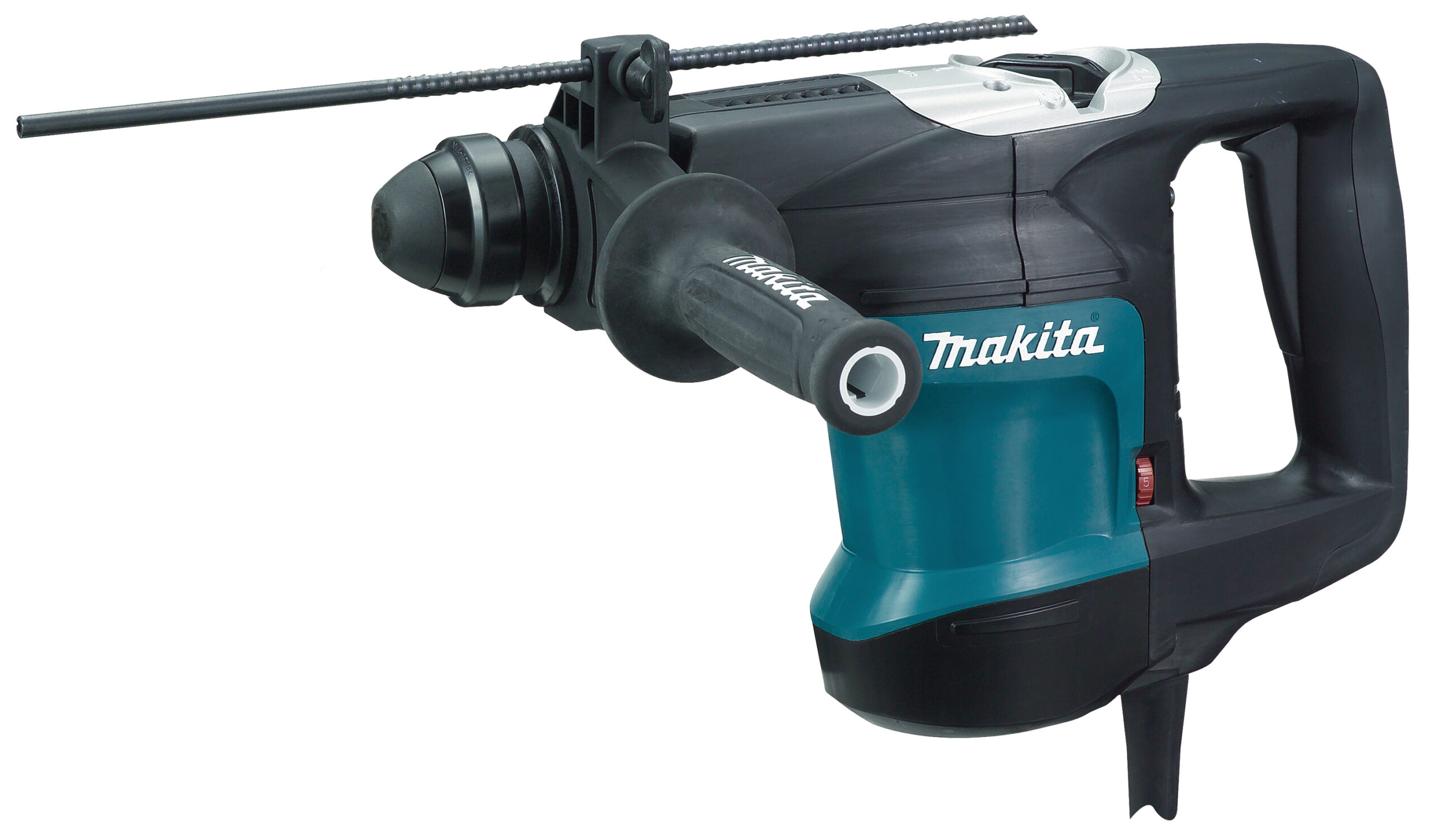

Combination Hammer
HR3200C
850 W • SDS-Plus • 32 mm • 5,5 J
Three-mode, anti-vibration combination hammer with quick-change chuck for heavy-duty use
An efficient combination hammer for SDS-Plus bits. Suitable for impact and unstressed drilling, plus chipping. 850 W output and speed can be adjusted between 315 and 630 min-1. Impact energy of 5,1 J and optimal drilling range of 10 – 22 mm in concrete. Max. drilling capacity of 32 mm in concrete.
• Dust-protected tool holder
• 24-fache Meißelverstellung
• Kontrollleuchte meldet Betriebsbereitschaft und Kohlebürstenverschleiß
| Vibration Level (3 axes), Drilling | ≤ 2,5 m/s² |
|---|---|
| Drilling diameter with TCT core bit | 90 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Max. Drilling Diameter in Wood | 32 mm |
| Vibration Level (3 axes), Impact Drilling | 13,7 m/s² |
| Optimum Drilling Diameter Range in Concrete | 10.0-22 mm |
| Sound Pressure Level | 89 dB(A) |
| Power Supply Cord | 5,0 m |
| Impact Energy | 5,1 J |
| Continuous Input Power | 850 W |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Vibration: Chiselling | 19,4 m/s² |
| Product Dimensions (L x W x H): | 398 x 108 x 239 mm |
| Impacts per Minute (IPM) | 1650 - 3300 min⁻¹ |
| Weight Without Cable (EPTA) | 4,8 kg |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Drilling Diameter in Concrete | 32 mm |
| Adapted for SDS-PLUS bits | 1 |
| Tool Category | Hammer Drilling and Chiseling |
| No load speed | 315 - 630 min⁻¹ |
