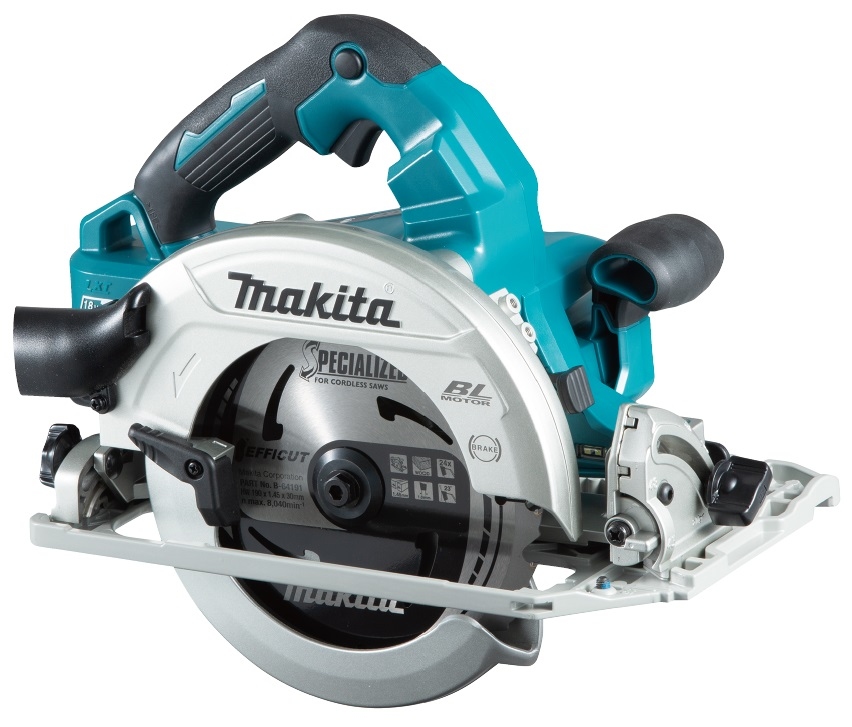

Circular Saw LXT
DHS783T2JU
36V (18Vx2) LXT • 6 000 min⁻¹ • 190 mm
Highly robust circular saw for demanding applications and with AWS fucntion
Highly efficient cordless circular saw for demanding use. Brushless 18V+18V motor runs on two 18V batteries. The blade can reach up to 6,000 rpm to ensure high cutting performance. The aluminium saw table is directly attached to the guide bar. Vacuum remote startup with wireless bluetooth connection. Includes 2 x 5,0 Ah batteries and a two port charger. in a Makpac case.
• Brushless maintenance-free and long-life motor
• Battery protection system automatically shuts off power when the battery level is low
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Max. Cutting Depth at 45° | 44,5 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 44,5 / 43,0 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Tool weight with battery (EPTA) | 4,5 - 5,1 kg |
| Brushless Motor | YES |
| Battery Voltage | 2 x 18 V |
| Max. Bevel Range (Left) | 0 / 48 º |
| Sound Pressure Level | 93 dB(A) |
| Product Dimensions (L x W x H): | 348 x 210 x 290 mm |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
| Sound Power Level (LWA) | 104 dB(A) |
| Voltage LXT | 1 |
| System | LXT 18V/36V |
| Product net weight (new) | 3,8 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Max. Cutting Depth at 48° | 42 / 41 mm |
| Tool Category | Sawing |
| Max. Cutting Depth at 90° | 62,5 mm |
| Blade Diameter | 190 mm |
| Max Output Power | 1800 W |
| No load speed | 6000 min⁻¹ |
| AWS FUNCTION | YES |
• 1pc DC18RD Two Port Fast Charger
• 2pcs BL1850B (5.0Ah) 18V LXT Battery
• Wireless Unit
• Makpac Case
Find available product documentation using the Makita UAE support resources below.
Model: DHS783T2JU
