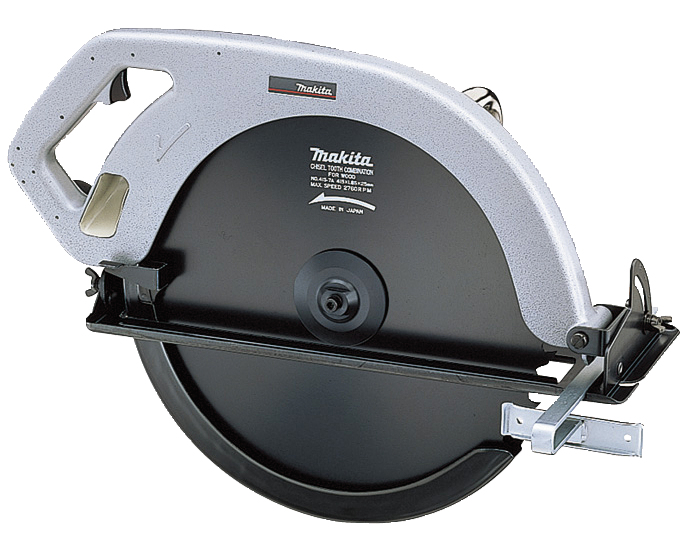

Circular saw
5402
1 750 W • 415 mm • 2 200 min⁻¹
Large saw for heavy-duty use
A large-scale circular saw with a 1 750 W motor and speed of 2 200 min-1. The tool accepts blades with a diameter of 415 mm with a huge cutting depth of 157 mm.
• The all-metal gearbox design guarantees a long service life.
• Single action lever for quick adjustment of cutting depth
| Bore Size (Arbor Diameter) | 25 mm |
|---|---|
| Max. Cutting Depth at 45° | 106 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 106 mm |
| Power Supply Cord | 5,0 m |
| Max. Bevel Range (Left) | 0 / 45 º |
| Weight Without Cable (EPTA) | 14 kg |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Continuous Input Power | 1450 W |
| No load speed | 2200 min⁻¹ |
| Blade Diameter | 415 mm |
| Max. Cutting Depth at 90° | 157 mm |
| Tool Category | Sawing |
