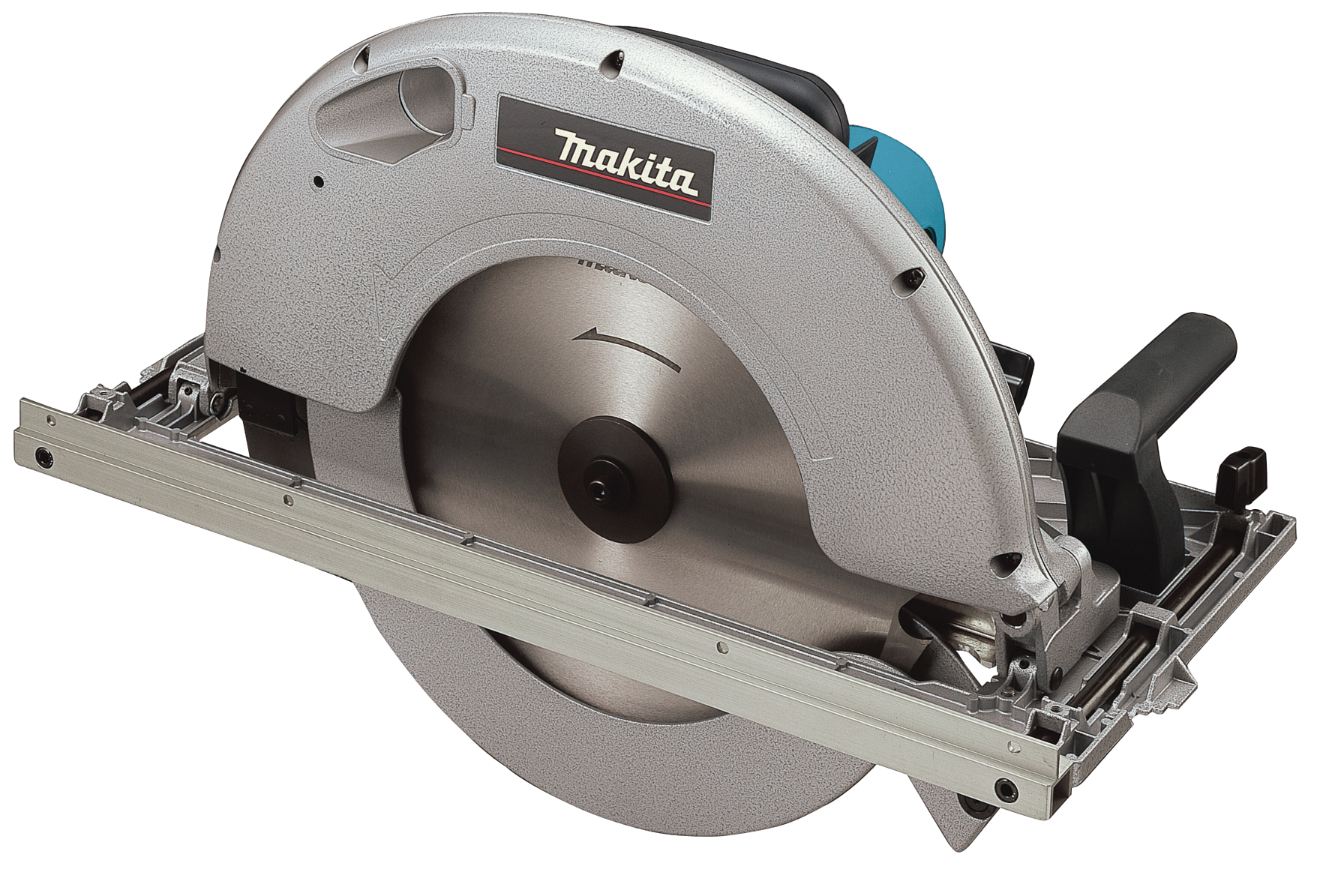

Circular Saw
5143R
2 200 W • 2 700 min⁻¹ • 355 mm
Large saw for heavy-duty use
A large-scale circular saw with a 2 200 W motor and speed of 2 700 min-1. The tool accepts blades with a diameter of 355 mm with a huge cutting depth of 130 mm. Soft start for added safety.
| Bore Size (Arbor Diameter) | 30 mm |
|---|---|
| Max. Cutting Depth at 45° | 90 mm |
| Capacity 45° (Miter R/L 45°, Bevel 0°) | 90 mm |
| Power Supply Cord | 5,0 m |
| Product Dimensions (L x W x H): | 607 x 323 x 416 mm |
| Sound Pressure Level | 94 dB(A) |
| Max. Bevel Range (Left) | 0 / 60 º |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Weight Without Cable (EPTA) | 12,5 kg |
| Vacuum cleaner connection Ø in / out | 30/38 mm |
| Vibration Uncertainty (K Factor) | 1,5 m/s² |
| Continuous Input Power | 2200 W |
| No load speed | 2700 min⁻¹ |
| Blade Diameter | 355 mm |
| Max. Cutting Depth at 90° | 130 mm |
| Tool Category | Sawing |
| Sound Power Level (LWA) | 104 dB(A) |
| Vibration Level (3 axes) | ≤ 2,5 m/s² |
Find available product documentation using the Makita UAE support resources below.
Model: 5143R
